Запчасти Case IH 695 (4-52) - ALTERNATOR ASSEMBLY, LUCAS 45 AMP (04) - ELECTRICAL SYSTEMS

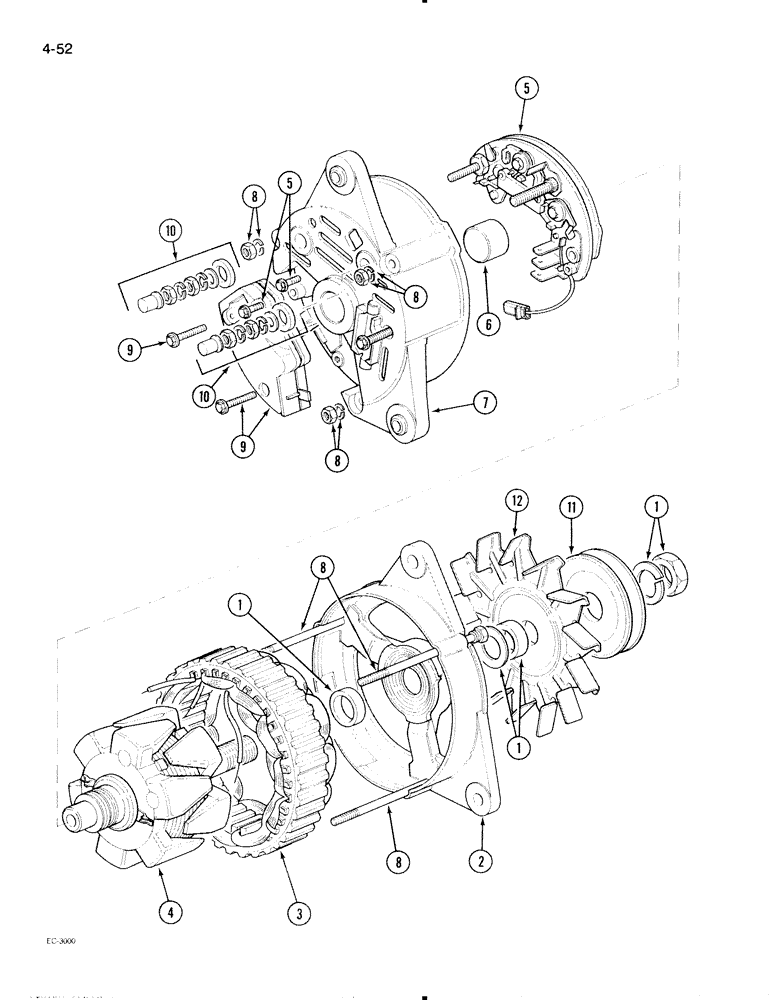

Схема запчастей Case IH 695 - (4-52) - ALTERNATOR ASSEMBLY, LUCAS 45 AMP (04) - ELECTRICAL SYSTEMS
8
8
3
2
12
6
10
10
1
8
4
5
5
9
8
1
9
11
8
1
7

Артикул

Название

Примечание

Количество

92293C1

ALTERNATOR

ALTERNATOR ASSEMBLY - Lucas A127-45 (With fan and pulley), Includes: Ref. 1 - 12

1шт.

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

92293C1GV

ALTERNATOR

Value

1шт.

1

K262477

KIT

KIT - sundry parts

1шт.

2

K262268

BRACKET

HOUSING ASSEMBLY - drive end

1шт.

3

K262273

STATOR

STATOR - alternator

1шт.

4

K262269

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

5

K262267

RECTIFIER

RECTIFIER ASSEMBLY - alternator

1шт.

6

K262272

ROLLER BEARING

BEARING - slip ring end

1шт.

7

K262271

SUPPORT

BRACKET - slip ring end

1шт.

8

K262274

PACKAGE

KIT - through bolt fixing

1шт.

9

K262266

REGULATOR

REGULATOR - complete with brush box

1шт.

10

K262478

KIT

KIT - terminal parts

1шт.

11

1970879C1

PULLEY

KIT - pulley, 17 mm bore, with washer

1шт.

12

K311704

FAN

KIT - fan, 17 mm bore, with spacer K311705

1шт.

Выбрано товаров: 16
