Запчасти Case IH 695 (4-52[A]) - ALTERNATOR ASSEMBLY, LUCAS 65 AMP (04) - ELECTRICAL SYSTEMS

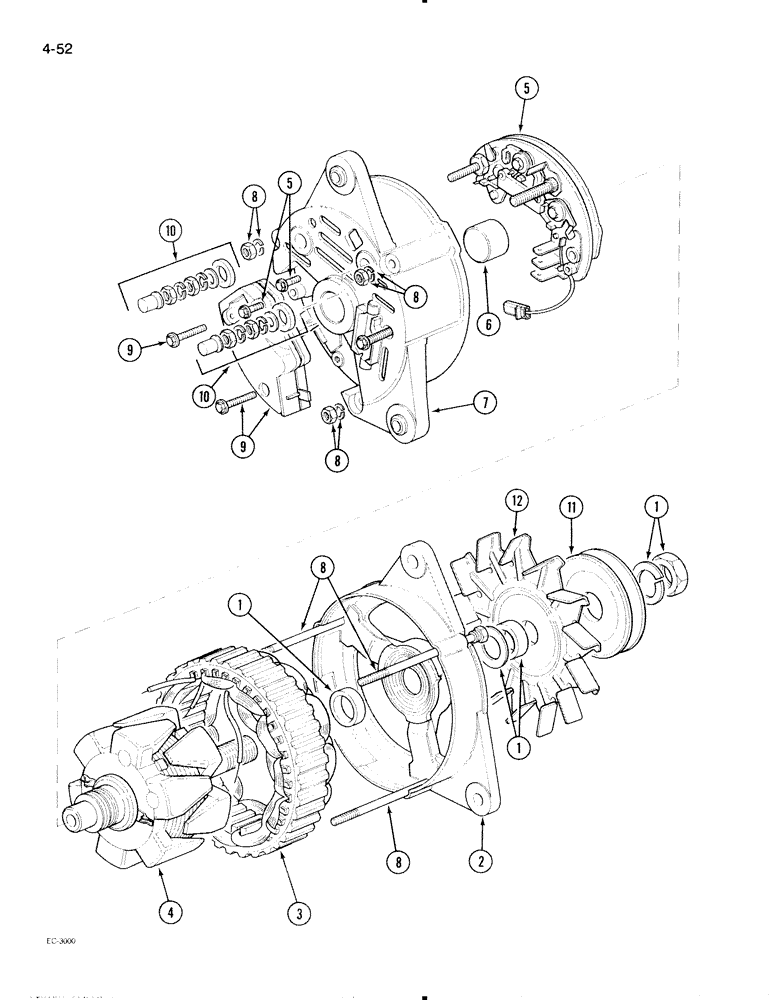

Схема запчастей Case IH 695 - (4-52[A]) - ALTERNATOR ASSEMBLY, LUCAS 65 AMP (04) - ELECTRICAL SYSTEMS
9
1
1
9
3
1
12
5
6
2
8
10
8
4
11
7
8
5
10
8
8

Артикул

Название

Примечание

Количество

92281C1

ALTERNATOR

ALTERNATOR ASSEMBLY - Lucas A127-56 (With fan and pulley), Includes: Ref. 1 - 12

1шт.

87800219R

REMAN-ALTERNATOR

Reman for New P/N 92281C1

1шт.

87800219C

CORE-ALTERNATOR

Return Part Number

1шт.

1

K262477

KIT

KIT - sundry parts

1шт.

2

K262268

BRACKET

HOUSING ASSEMBLY - drive end

1шт.

3

K262275

STATOR

STATOR - alternator

1шт.

3

K262275

STATOR

STATOR - alternator

1шт.

4

K262270

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

5

K262267

RECTIFIER

RECTIFIER ASSEMBLY - alternator

1шт.

6

K262272

ROLLER BEARING

BEARING - slip ring end

1шт.

7

K262271

SUPPORT

BRACKET - slip ring end

1шт.

8

K262274

PACKAGE

KIT - through bolt fixing

1шт.

9

K262266

REGULATOR

REGULATOR - complete with brush box

1шт.

10

K262478

KIT

KIT - terminal parts

1шт.

11

1970879C1

PULLEY

KIT - pulley, 17 mm bore, with washer

1шт.

12

K311704

FAN

KIT - fan, 17 mm bore, with spacer

1шт.

Выбрано товаров: 16
