Запчасти Case IH 695 (4-50) - ALTERNATOR MOUNTING AND SHIELD (04) - ELECTRICAL SYSTEMS

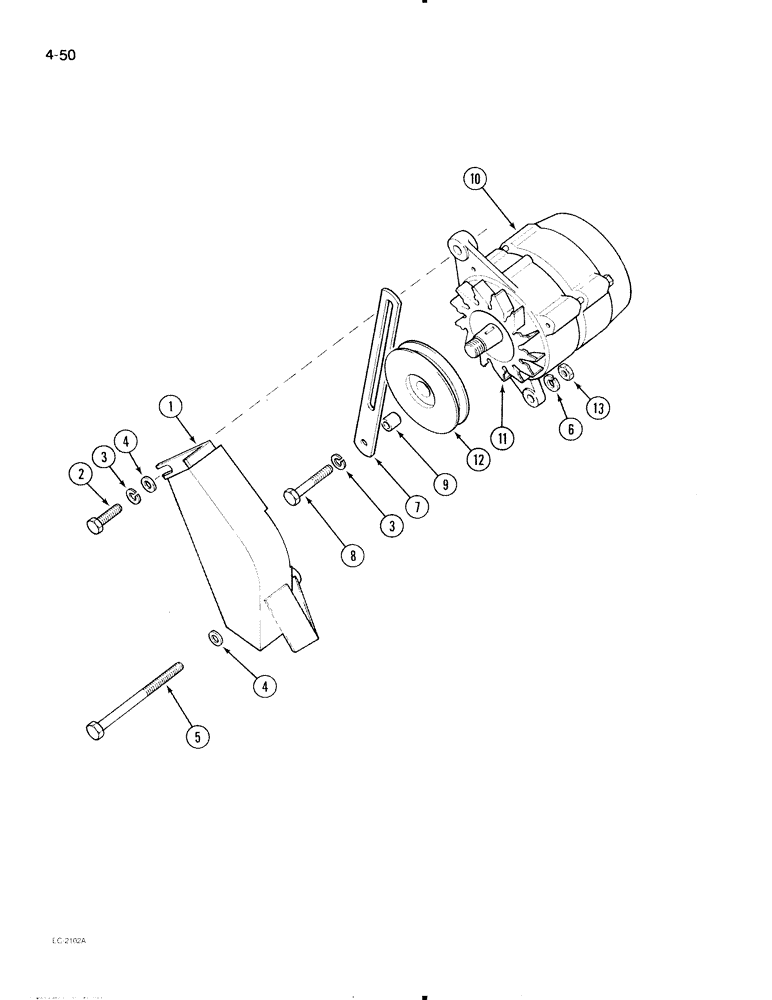

Схема запчастей Case IH 695 - (4-50) - ALTERNATOR MOUNTING AND SHIELD (04) - ELECTRICAL SYSTEMS
11
12
6
13
3
5
9
2
8
1
10
3
4
4
7

Артикул

Название

Примечание

Количество

1

3129852R7

SHIELD

SHIELD - alternator

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex, 8 mm - 1.25 x 25 mm

1шт.

3

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

495-11034

WASHER,5/16", SAE

WASHER, 5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

5

13-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

BOLT, Hex, 5/16"-18 x 4 3/4", G5

1шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

3113336R1

BRACE

BRACE - alternator

1шт.

8

13-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 4 1/2", G5

1шт.

9

65881H

SPACER,1/4" Pipe x 1 1/4"

SPACER - standard pipe, 1/4 x 1-1/4 inch

1шт.

10

92281C1

ALTERNATOR

ALTERNATOR ASSEMBLY - Lucas, A127-65, with fan and pulley (See Figure 4-52)

1шт.

10

87800219R

REMAN-ALTERNATOR

Reman For New PN 92281C1

1шт.

10

87800219C

CORE-ALTERNATOR

Return Part Number

1шт.

10

92293C1

ALTERNATOR

ALTERNATOR ASSEMBLY - Lucas, A127-45 with fan and pulley (See Figure 4-52)

1шт.

10

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

10

92293C1C

CORE-ALTERNATOR

Return Part Number

1шт.

10

92293C1GV

ALTERNATOR

Value

1шт.

11

K311704

FAN

KIT - fan, 17 mm bore, with spacer K311705

1шт.

12

1970879C1

PULLEY

KIT - pulley, 17 mm bore, with washer

1шт.

13

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.

Выбрано товаров: 19
