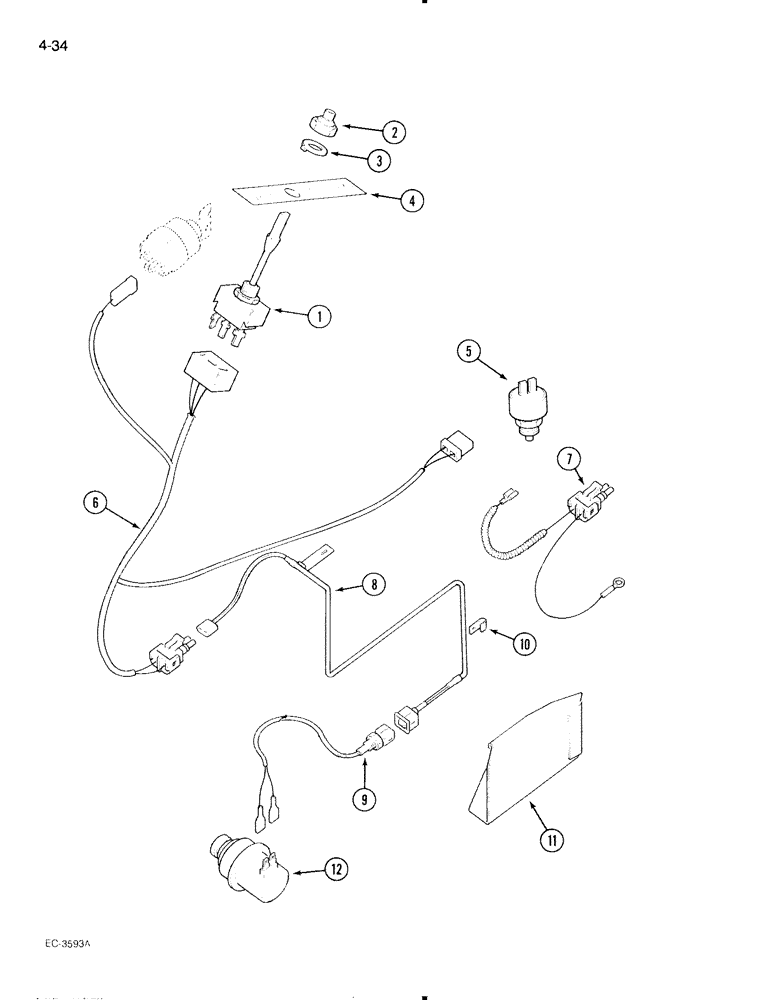

Запчасти Case IH 695 (4-34) - TWO SPEED POWER SHIFT CONTROL, TRACTOR WITHOUT CAB, TRACTOR W/ CAB (04) - ELECTRICAL SYSTEMS

1

1537379C1

TOGGLE SWITCH

SWITCH - toggle (2 speed power shift control)

1шт.

2

1536155C1

WASHER

- keyed

1шт.

3

1536156C1

COVER

- toggle switch

1шт.

4

1330901C1

DECAL

- 2 speed power shift

1шт.

5

3106565R91

SWITCH

- plunger, neutral starting

1шт.

6

1537028C1

HARNESS

ASSEMBLY - main cable

1шт.

8

99992C2

CABLE

- 2 speed power shift

1шт.

9

99990C1

HARNESS

CABLE - solenoid

1шт.

10

92071C1

CLAMP

CLIP - solenoid cable

1шт.

11

99952C2

SHIELD

- solenoid cable

1шт.

12

1958120C1

SOLENOID VALVE

VALVE - solenoid (See Figure 8-24)

1шт.

1

1536154C1

TOGGLE SWITCH

SWITCH - toggle (2 speed power shift control), tractor with cab

1шт.

2

1536155C1

WASHER

- keyed, tractor with cab

1шт.

3

1536156C1

COVER

- toggle switch, tractor with cab

1шт.

4

98098C1

DECAL

- 2 speed power shift, tractor with cab

1шт.

5

1332724C1

SWITCH

- plunger, neutral starting, tractor with cab

1шт.

6

1536959C1

HARNESS

ASSEMBLY - instrument panel (Prior to P.I.N. JJE0017402) tractor with cab

1шт.

6

1537986C1

HARNESS

ASSEMBLY - instrument panel (P.I.N. JJE0017402 and After) tractor with cab

1шт.

7

91917C2

CABLE

- 2 speed power shift solenoid, tractor with cab

1шт.

8

99991C1

CABLE

- 2 speed power shift, tractor with cab

1шт.

9

99990C1

HARNESS

CABLE - solenoid, tractor with cab

1шт.

10

92071C1

CLAMP

CLIP - solenoid cable, tractor with cab

1шт.

11

99952C2

SHIELD

- solenoid cable, tractor with cab

1шт.

12

1958120C1

SOLENOID VALVE

VALVE - solenoid (See Figure 8-24), tractor with cab

1шт.
