Запчасти Case IH 695 (4-28) - INSTRUMENTS AND SWITCHES, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

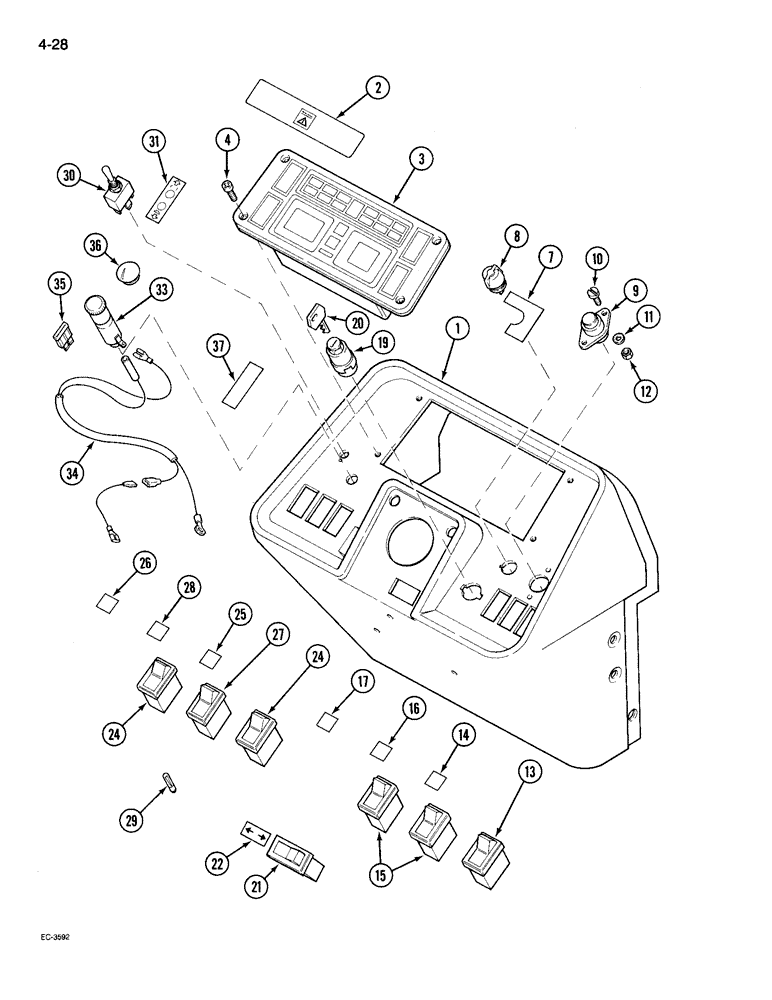

Схема запчастей Case IH 695 - (4-28) - INSTRUMENTS AND SWITCHES, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS
24
4
25
16
37
34
30
8
1
31
28
9
12
27
24
15
22
2
35
36
10
14
11
7
29
26
20
21
3
33
17
13
19

Артикул

Название

Примечание

Количество

1

1536949C1

PANEL, INSTRUMENTS

PANEL ASSEMBLY - instrument rear (See Figure 9-020), Includes: Ref. 2

1шт.

2

321-6770

DECAL

- warning, IPTO overspeed (English)

1шт.

2

321-6781

DECAL

- warning, IPTO overspeed (French)

1шт.

3

1983576C4

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instruments

1шт.

Add item. 245918C1 blanking plug used with 1983576C(4), item 3.

1шт.

4

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, pan head,cross recessed 3/4 inch

4шт.

7

1265116C1

PRODUCT GRAPHIC

DECAL - light switch, (English)

1шт.

8

107200C2

LIGHT SWITCH

SWITCH - rotary, lights

1шт.

9

397940R93

SWITCH

- push button, horn

1шт.

10

470-1106

SCREW,Slotted Pan Hd, #10-24 x 3/8"

- pan head slotted, No. 10 NF x 3/8 inch

2шт.

11

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

12

225-13110

NUT,#10-24

2шт.

13

91855C1

SWITCH

- headlight dip

1шт.

14

91856C1

SYMBOLS

DECAL - symbol, high beam (Blue)

1шт.

15

245909C1

SWITCH ASSY

SWITCH - rocker

3шт.

16

245913C1

DECAL

DECAL - symbol, rear worklight (Green)

1шт.

17

245912C1

LENS,GREEN

DECAL - symbol, front worklight (Green)

1шт.

19

A187613

IGNITION SWITCH

SWITCH - ignition, with key

1шт.

19

A187614

IGNITION SWITCH

SWITCH - ignition, with thermostart

1шт.

20

A77313

SET OF 2 KEYS

KEY - ignition switch

1шт.

21

1983638C1

FLASHER SWITCH

SWITCH - rocker, turn signal

1шт.

22

1983639C1

SYMBOL

DECAL - turn signal (Green)

1шт.

24

245911C1

TOGGLE SWITCH

SWITCH - rocker

2шт.

25

1328477C1

LENS

DECAL - symbol, rear window wipe/wash (Green)

1шт.

26

245915C1

DECAL

DECAL - symbol, windshield wipe/wash

1шт.

27

3231782R1

SWITCH

- rocker

1шт.

28

91857C1

SYMBOLS

DECAL - symbol, ether start switch (Yellow)

1шт.

29

3141107R1

BULB,W5/1.2, 12V, 1.2W

Rocker switch illumination W5/1.2, 12V, 1.2W

1шт.

30

1536154C1

TOGGLE SWITCH

SWITCH - toggle, 2 speed power shift (See Figure 4-34)

1шт.

31

98098C1

DECAL

- 2 speed power shift

1шт.

33

3121407R92

LIGHTER, CIGARETTE

LIGHTER - cigar

1шт.

34

91896C1

HARNESS

- cigar lighter

1шт.

35

A149800

FUSE,10 Amp

- auto type, 10 amp (Red)

1шт.

36

3129927R1

PLUG

- blanking, (If cigar lighter is not fitted)

1шт.

37

1985097C2

DECAL

- creeper speed

1шт.

37

533593R2

PRODUCT GRAPHIC

DECAL - forward and reverse

1шт.

Выбрано товаров: 36
