Запчасти Case IH 695 (4-06) - LIGHTS AND HARNESS, CROWN TOP FENDERS (04) - ELECTRICAL SYSTEMS

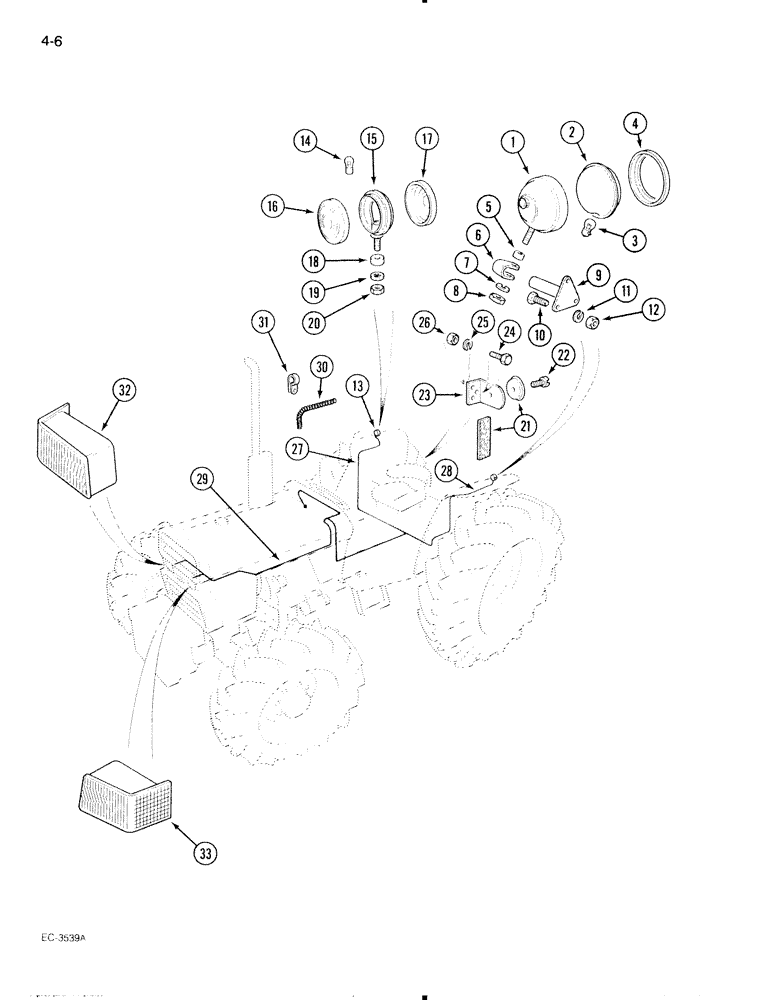

Схема запчастей Case IH 695 - (4-06) - LIGHTS AND HARNESS, CROWN TOP FENDERS (04) - ELECTRICAL SYSTEMS
6
4
16
18
13
2
26
28
32
10
17
8
14
27
31
24
5
23
12
7
29
33
1
11
20
9
21
30
25
22
15
3
19

Артикул

Название

Примечание

Количество

387729R92

LIGHT ASSY.

LIGHT ASSEMBLY - combination, work, stop and tail, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - combination light

1шт.

2

80627C1

LIGHT ASSY.

LIGHT - combination, with bulb, Includes: Ref. 3

1шт.

3

142456

BULB

- lamp, type C-6, trade No. 1141 (Order 33686)

1шт.

4

676078R1

RETAINER

- light, shockproof (Order A25213)

1шт.

5

365503R1

SPACER

- combination light

1шт.

6

350920R1

CLAMP

- combination light

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

9

401471R1

POST

ASSEMBLY - combination light

1шт.

9

1333098C1

POST

ASSEMBLY - combination light (Orchard tractor)

1шт.

10

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

11

492-11038

LOCK WASHER,3/8"

3шт.

12

425-106

NUT,3/8"-16, Cl 5

3шт.

13

67538C92

HEADLIGHT

LIGHT ASSEMBLY - flasher, 1/2" stud, includes bulb, rings, washer, and nut

2шт.

9417866

BULB,C6, #1156, 12.8V

- lamp, No. 1156 (Not illustrated)(Order A41264)

1шт.

394262R1

WASHER

RING - sealing, 1/2" (Not illustrated)

2шт.

493-21047

WASHER

- lock, internal tooth, 1/2" (Not illustrated)

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

(Not illustrated) Jam, 1/2"-20, G5

1шт.

3123675R93

HEADLIGHT

LIGHT ASSEMBLY - flasher 7/16" stud (Order 67538C92), Includes: Ref. 14 - 19

2шт.

14

3025210R91

BULB

- lamp, 12 volt/21 watt (Order A41264)

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - flasher light

1шт.

16

3112682R1

LENS

- front, amber

1шт.

17

3112683R1

LENS

- rear, amber

1шт.

18

899282R1

O-RING

RING - sealing

2шт.

19

493-21046

LOCK WASHER,Int Tooth, 7/16"

WASHER - lock, internal tooth, 7/16 inch

1шт.

20

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

21

3118665R2

REFLECTOR

- red (Round)

2шт.

21

1284374C1

REFLECTOR,Reflector Red

- red (Rectangle)

2шт.

22

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - tapping, pan head Phillips, No. 10 NC x 1/2 inch

2шт.

23

3125247R3

BRACKET

- reflector mounting

2шт.

23

1333043C1

BRACKET

- reflector mounting (Orchard tractor)

2шт.

24

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

27

3123678R2

HARNESS

- fender, right

1шт.

28

3123677R1

HARNESS

- fender, left

1шт.

29

1537028C1

HARNESS

ASSEMBLY - main cable

1шт.

30

1536349C1

LOOM,11.5" ID, 15.5" OD, 318" Length

TUBE - insulated convolute conduit, 318 mm (Without ROPS) (Order 1536137C1 and cut to length)

1шт.

30

1536137C1

LOOM,11.5 mm ID, 15.5 mm OD, 635 mm Length

TUBE - insulated convolute conduit, 635 mm

1шт.

31

316433C1

CLAMP

CLIP - cable (Without ROPS)

2шт.

31

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - cable (With ROPS)

6шт.

32

1964881C2

HEADLIGHT

LIGHT - head, without bulb, right (See Figure 4-16)

1шт.

33

1964882C2

HEADLIGHT

LIGHT - head, without bulb, left (See Figure 4-16)

1шт.

Выбрано товаров: 44
