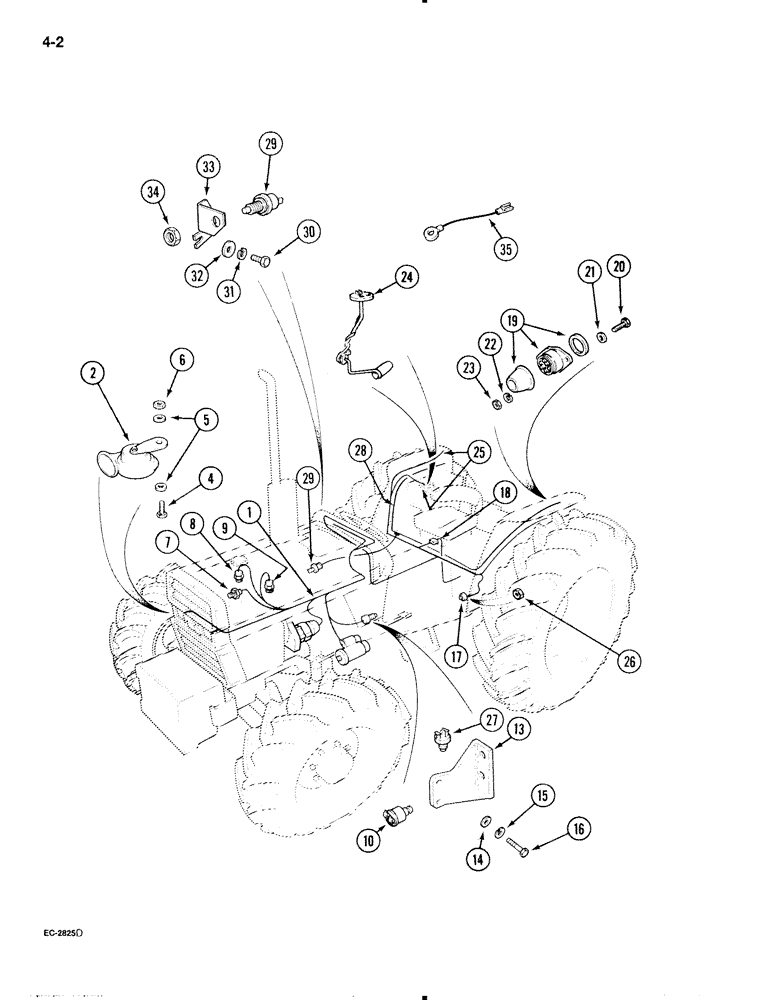

Запчасти Case IH 695 (4-02) - CHASSIS HARNESS AND SWITCHES, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

1537028C1

HARNESS

ASSEMBLY - main cable

1шт.

2

3057542R91

HORN

- warning (See Figure 9-10)

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 9/32 x 5/8 x 1/16 inch

2шт.

6

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

7

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator (See Figure 2-20)

1шт.

8

3127956R1

TEMPERATURE SENDER

TRANSMITTER - water temperature, Icknield

1шт.

9

91450C1

SWITCH, PRESSURE

SWITCH ASSEMBLY - engine oil pressure (On oil filter base)

1шт.

10

3072122R94

NEUTRAL START SWITCH

SWITCH - plunger, neutral starting (Order 3114409R92)

1шт.

#10: 3114409R92 is 2 prong switch. 4 prong switch is 1964885C3

1шт.

13

1536664C1

SUPPORT

BRACKET - neutral starting switch

1шт.

14

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

2шт.

15

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

1332724C1

SWITCH

- plunger, park brake warning

1шт.

18

82634C1

CABLE

- MFD solenoid (See Figure 4-36)

1шт.

19

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET - , with boot 7 Pin

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

21

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

125-10001

NUT,5/16"-18, G5

2шт.

24

3129841R91

FUEL GAUGE

TRANSMITTER - fuel gauge, Icknield

1шт.

25

3123678R2

HARNESS

- fender, right (Crown top fenders)

1шт.

25

1536337C1

HARNESS

- fender, right (Flat top fenders)

1шт.

26

1332725C1

NUT

M18

1шт.

27

3106565R91

SWITCH

plunger switch, 2 speed power

1шт.

28

1537163C1

HARNESS

- stop and tail light

1шт.

29

1332724C1

SWITCH

- brake light

1шт.

30

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Brake switch bracket Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

31

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

95-11041

WASHER,3/8"

flat (10 mm) 3/8"

1шт.

33

1332723C2

SUPPORT

BRACKET - brake light switch

1шт.

34

1332725C1

NUT

M18

1шт.

35

1537714C1

CABLE

- earth 7 pin socket

1шт.
