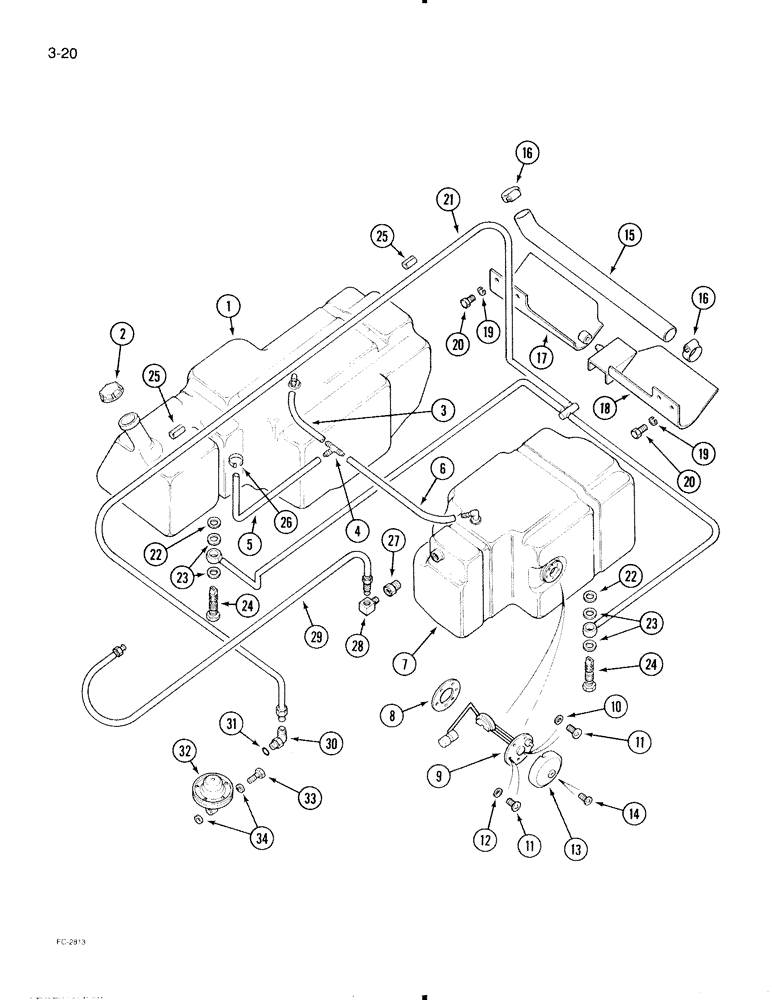

Запчасти Case IH 695 (3-20) - FUEL TANK AND FUEL LINES, TRACTOR WITH CAB (03) - FUEL SYSTEM

1

1500252C94

TANK

ASSEMBLY - fuel, right, Includes: Ref. 2

1шт.

SOME 85/95 SERIES FUEL TANKS BUILT BETWEEN 1988 AND 1993 WERE MANUFACTURED WITH OVERSIZED FUEL TANK FILLER NECKS.A NEW FILLER CAP HAS BEEN RELEASED FOR 85/95 SERIES TRACTORS THAT HAVE THE OVERSIZE FILLER NECKS.NEW CAP IS PART 255345A1.SEE SERVICE BULLETIN EBT SB 002 97.

1шт.

2

1500254C1

CAP

ASSEMBLY - fuel filler

1шт.

REF: #2 - 1500254C1 CAP - THE GASKET FOR THIS CAP IS PART NUMBER 140756A1.

1шт.

3

1500291C1

HOSE

- breather, right tank

1шт.

4

1500292C1

UNION

TEE - hose, barbed

1шт.

5

1500288C1

HOSE

- breather

1шт.

6

1500290C1

HOSE

- breather, left tank

1шт.

7

1500251C2

TANK

ASSEMBLY - fuel, left

1шт.

SOME 85/95 SERIES FUEL TANKS BUILT BETWEEN 1988 AND 1993 WERE MANUFACTURED WITH OVERSIZED FUEL TANK FILLER NECKS.A NEW FILLER CAP HAS BEEN RELEASED FOR 85/95 SERIES TRACTORS THAT HAVE THE OVERSIZE FILLER NECKS.NEW CAP IS PART 255345A1.SEE SERVICE BULLETIN EBT SB 002 97.

1шт.

8

528359R1

GASKET

- sending unit

1шт.

9

1500494C91

FUEL GAUGE

TRANSMITTER - sender, fuel level

1шт.

10

796002R1

COPPER WASHER

WASHER - copper, sender unit ground

1шт.

11

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

- machine, pan head Phillips, No. 10 NF x 5/8 inch

5шт.

12

533199R1

SEALING WASHER

- sending unit cover

4шт.

13

528360R2

COVER

- sending unit

1шт.

14

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

1шт.

15

1500325C1

FUEL HOSE,30.00 mm ID x 410.00 mm, SAE 30R1

Fuel Tank Balance 30.00 mm ID x 410.00 mm, SAE 30R1

1шт.

16

704288R91

CLAMP

- hose

2шт.

17

82721C1

GUARD

SHIELD - fuel balance pipe, right

1шт.

18

82723C1

GUARD

SHIELD - fuel balance pipe, left

1шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

20

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 12 mm

4шт.

21

99795C2

PIPE

- fuel feed to fuel filter

1шт.

22

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

23

1282576C1

RING

- sealing, 14 x 22 mm

4шт.

24

1500329C1

BOLT,74mm

- banjo

2шт.

25

673171C1

RUBBER BUSHING

SLEEVE - rubber

2шт.

26

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle

1шт.

27

1500333C1

ADAPTER,3/8"-18 NPT Fem x M14 x 1.5 Male

- fuel return pipe

1шт.

28

528929R1

CHECK VALVE

VALVE - check

1шт.

29

99871C3

PIPE

ASSEMBLY - fuel return

1шт.

30

9410975

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

- 90 deg adjustable straight, 5/16 inch tube

1шт.

32

1202938C92

FEED PUMP

PUMP ASSEMBLY - hand primer

1шт.

33

1203398C1

BANJO BOLT

BOLT, BANJO

1шт.

34

1203399C1

SEALING WASHER

- sealing

2шт.

31

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
