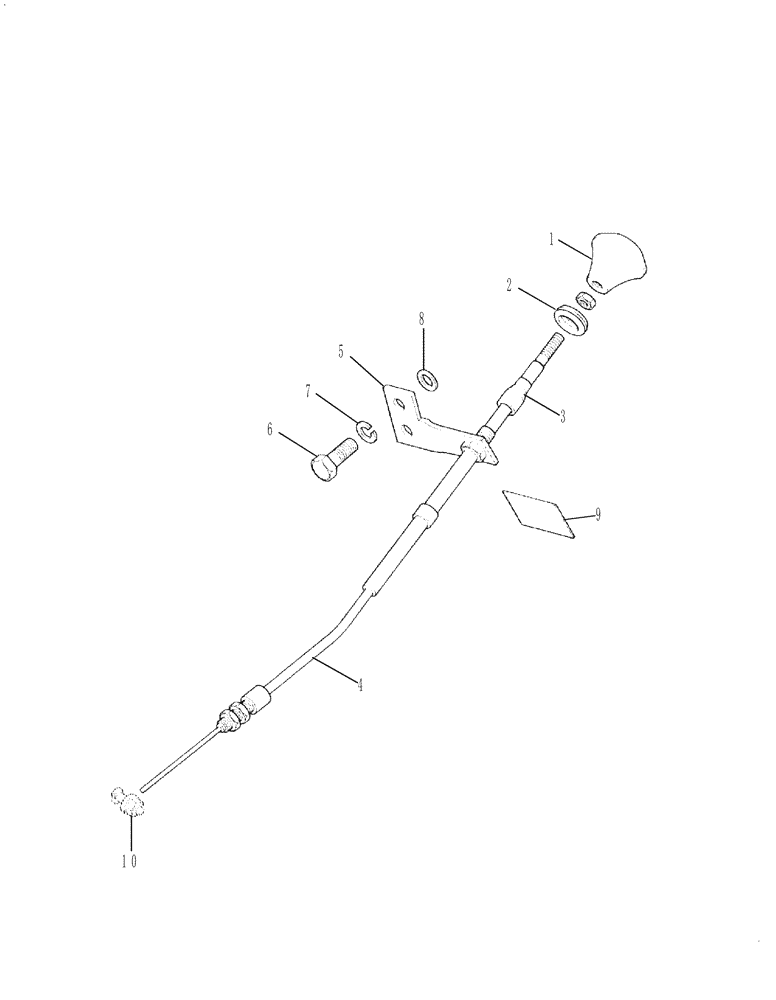

Запчасти Case IH 695 (3-08) - FUEL SHUT OFF CONTROL, TRACTOR WITHOUT CAB (03) - FUEL SYSTEM

1

3221357R1

BUTTON

KNOB - fuel shut-off control

1шт.

2

1333007C1

GROMMET

- diaphram, 3/4 inch

1шт.

3

1288353C1

BOOT

- rubber

1шт.

4

1333003C1

CABLE ASSY.

CABLE - fuel shut-off control

1шт.

5

1536068C1

SUPPORT

BRACKET - mounting, fuel shut-off cable

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

9

1333014C1

DECAL

- fuel control

1шт.

The shaded part at the end of the cable w/o part number is 787190R1.

1шт.

10

787190R1

COLLAR

CLAMP - cable

1шт.
