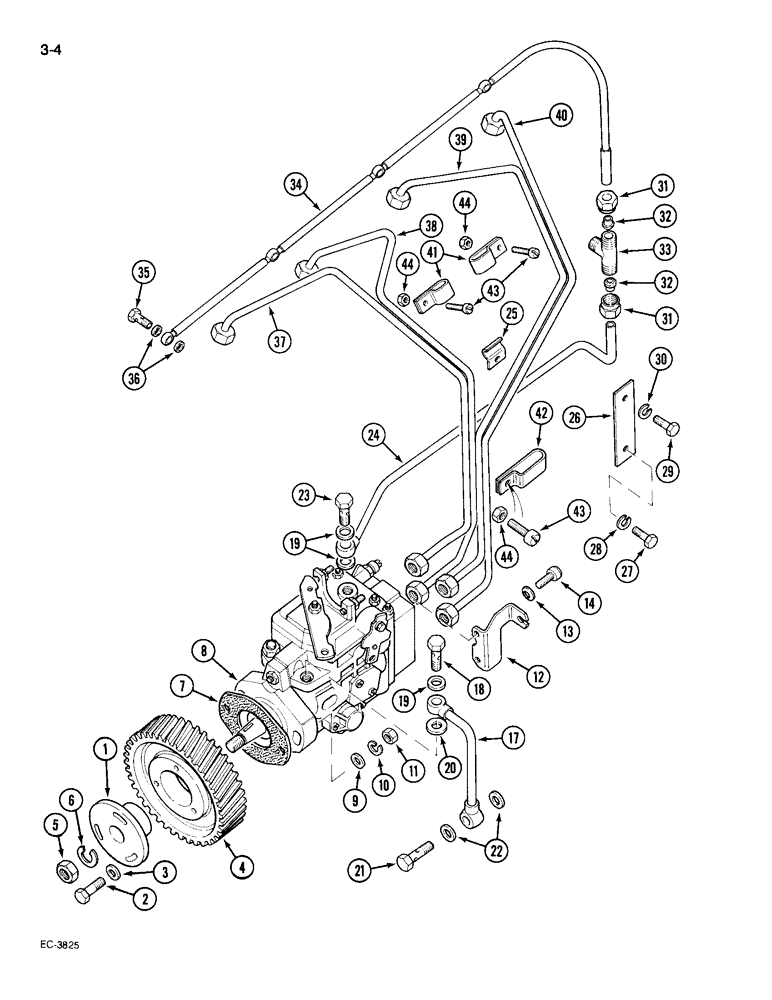

Запчасти Case IH 695 (3-04) - FUEL INJECTION PUMP AND TUBES (03) - FUEL SYSTEM

1

3055067R2

HUB

- injection pump gear

1шт.

2

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

3шт.

3

896-16008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

- flat M8 x 21.5 x 2.5, HT

3шт.

4

3056885R3

PINION

GEAR - injection pump

1шт.

5

933981R1

NUT,M12 x 1.75, Cl 5

Hex M12 x 1.75, Cl 5

1шт.

6

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

1шт.

7

3055384R2

GASKET

- fuel injection pump

1шт.

Part of crankcase gaskets service kit

1шт.

8

1329107C91

PUMP, FUEL INJECTION

PUMP - fuel injection (VE 4/11F 1200 R277)

1шт.

9

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

10

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

2шт.

12

3228735R1

SUPPORT

BRACKET - support, fuel shut-off cable

1шт.

13

905176R1

WAVE WASHER,M6.4 ID x 11 OD x .5 Thk

- spring bent M6.4 ID x 11 OD x .5 Thk

2шт.

14

930679R1

HEX SOC SCREW,M6 x 25mm, Cl 8.8

hex socket, 6 mm - 1.00 x 25 mm, class 8.8

2шт.

17

3132324R1

HOSE,8mm ID x 275mm L

PIPE - fuel, filter to injection pump

1шт.

18

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW - hollow

1шт.

19

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

3шт.

Part of crankcase gaskets service kit

1шт.

20

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

Part of crankcase gaskets service kit

1шт.

21

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow

1шт.

22

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

Part of crankcase gaskets service kit

1шт.

23

3079344R1

BANJO BOLT

SCREW - hollow, pump inlet union

1шт.

24

1329112C1

TUBE

PIPE - overflow

1шт.

25

3055386R1

CLAMP

CLIP - fuel line

2шт.

26

3055678R1

PLATE

LINK - fuel line clamping

2шт.

27

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

28

3052189R1

BELLEVILLE WASHER

- lock, 1/4 inch

2шт.

29

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

30

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

31

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT - coupling

2шт.

32

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

- compression

2шт.

33

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

- tee, special

1шт.

34

1967074C1

HOSE

- line leak

1шт.

35

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

- hollow, inlet union

4шт.

36

933696R1

SEALING RING,M6 x 10 x 1

RING - sealing, flat, 6 x 10 mm

8шт.

37

3218154R1

INJECTION PIPE

PIPE - injection, No. 1 cylinder

1шт.

38

3218155R1

INJECTION PIPE

PIPE - injection, No. 2 cylinder

1шт.

39

3218156R1

INJECTION PIPE

PIPE - injection, No. 3 cylinder

1шт.

40

3218157R1

INJECTION PIPE

PIPE - injection, No. 4 cylinder

1шт.

41

3132770R1

COLLAR

CLAMP - pipe

2шт.

42

3132768R1

CLAMP

- pipe

1шт.

43

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- machine, pan head, 6 mm - 1.00 x 12 mm

3шт.

44

825-1406

NUT,M6, Cl 8

3шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 7, 19, 20 and 22 (See Figure 2-66)

1шт.
