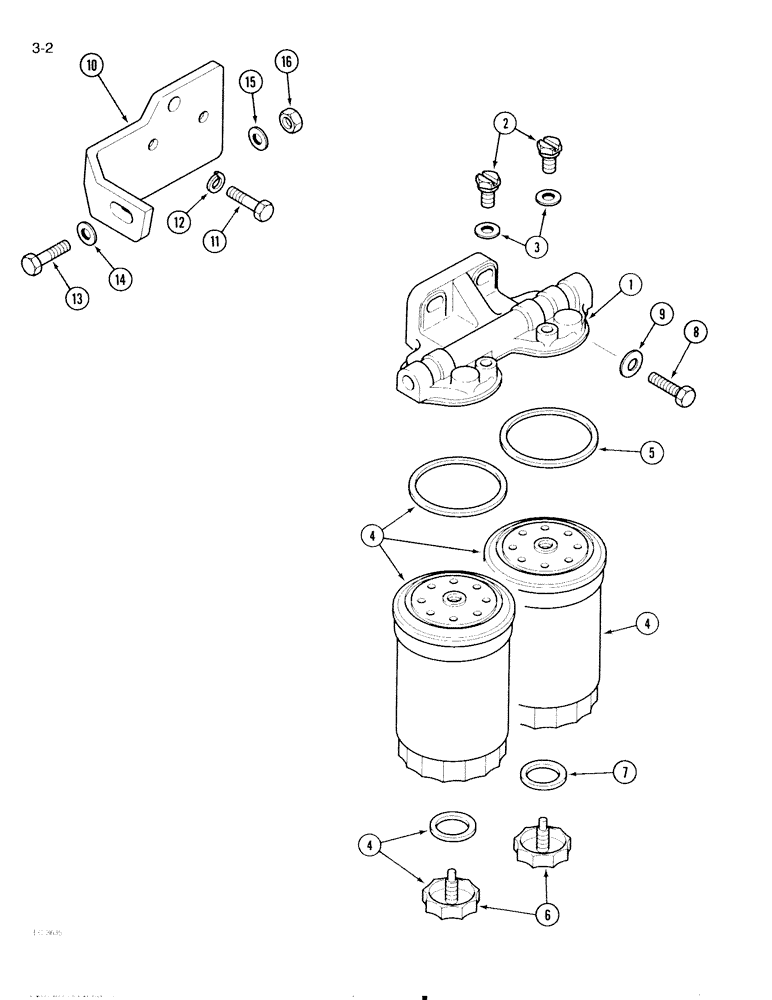

Запчасти Case IH 695 (3-02) - FUEL FILTER (03) - FUEL SYSTEM

3144992R91

FILTER, FUEL

FILTER - fuel, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

3144780R1

SCREW

- air vent

2шт.

3

933696R1

SEALING RING,M6 x 10 x 1

RING - 6 x 10 mm, packing

2шт.

4

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT - fuel filter, with seal, (Order 1967094C1), Includes: Ref. 5 - 7

2шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING - packing

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - drain, 9.8 mm (For Champion Filter) (Order Filter 3144992R91)

1шт.

6

3228407R1

PLUG

- drain, 7.8 mm (For Bosch Filter)

1шт.

7

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

- sealing (Used with 3228407R1)

1шт.

8

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

9

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc M10.2 ID x 20 OD x 1.1 Thk

2шт.

10

1329085C1

SUPPORT

BRACKET - fuel filter

1шт.

11

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

12

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

14

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

1шт.

15

25543R1

WASHER,.344" x 11/16" x .098", HDN

- hardend, 5/16 inch

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

1шт.
