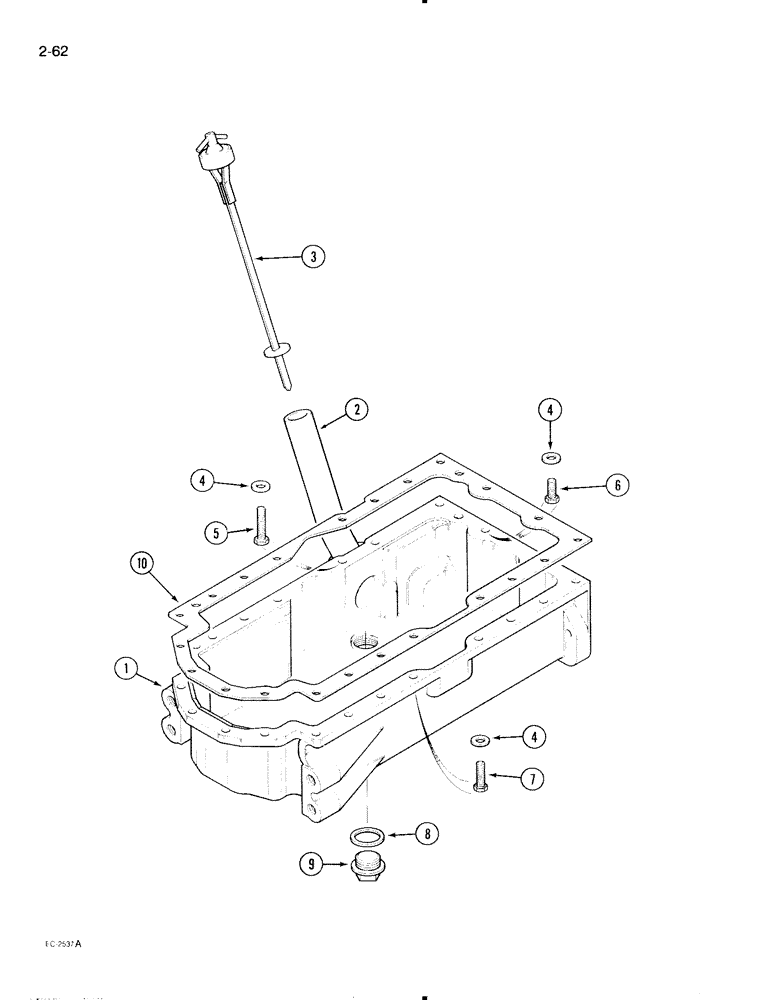

Запчасти Case IH 695 (2-62) - OIL PAN (02) - ENGINE

1

1806777C91

PAN, ENGINE OIL

PAN - oil, Includes: Ref. 2

1шт.

2

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE - filler

1шт.

3

1329040C3

DIPSTICK,260mm L

GAUGE - oil level

1шт.

4

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- hardened, 0.344 x 0.688 x 0.089 inch

22шт.

5

181101

BOLT,Hex, 5/16" - 18 x 3", Gr 5

hex, 5/16"-18 NC x 3 inch, grade 5

2шт.

6

313-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, Grade 8

2шт.

7

181089

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch, grade 5

18шт.

8

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

1шт.

Part of crankcase gaskets service kit

1шт.

9

3132544R2

PLUG

- hex, oil pan

1шт.

10

3055161R2

OIL PAN GASKET SET

- oil pan

1шт.

Part of crankcase gaskets service kit

1шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 8 and 10 (See Figure 2-66)

1шт.
