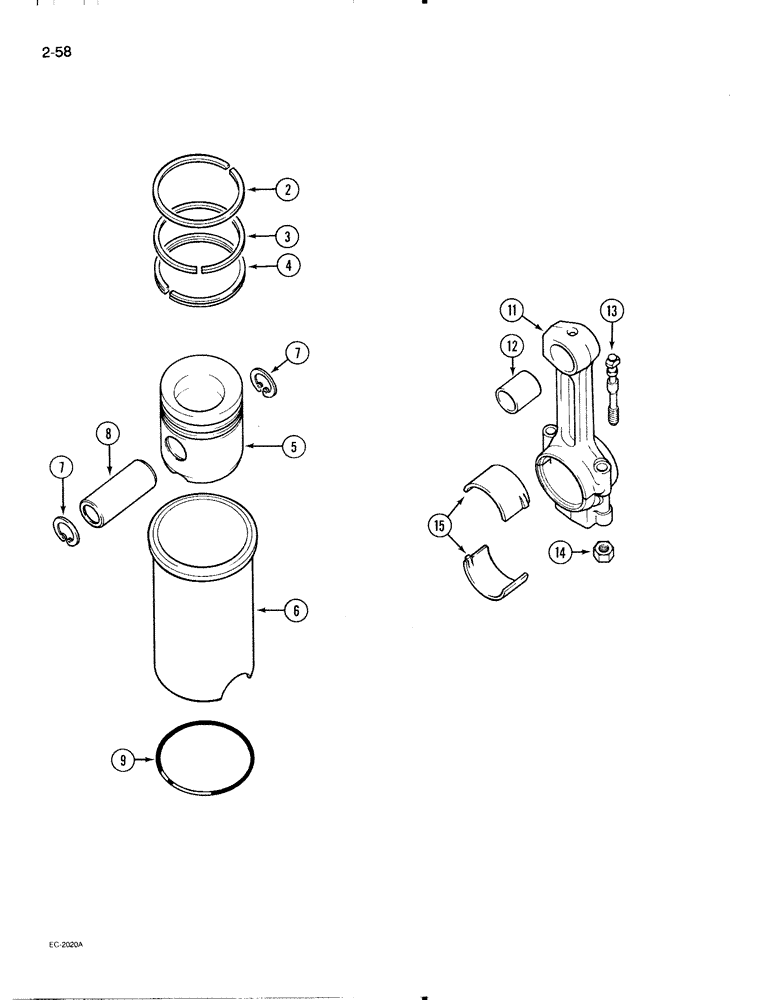

Запчасти Case IH 695 (2-58) - PISTONS AND SLEEVES (02) - ENGINE

1806470C91

SLEEVE ASSY

PISTON - with sleeve, Includes: Ref. 2 - 8

4шт.

3139594R91

PISTON RING

KIT - piston rings, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, first

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, second

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil control

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - engine

1шт.

6

3144682R3

SLEEVE CYLINDER

SLEEVE - cylinder

1шт.

7

933327R1

SNAP RING,M36, Int

RING - retaining

2шт.

8

3055217R2

PISTON PIN

PIN - piston

1шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

- packing, cylinder sleeve

4шт.

1967032C1

CONNECTING ROD

ROD ASSEMBLY - connecting , Includes: Ref. 11 - 14

4шт.

11

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

12

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

- piston pin, connecting rod

1шт.

13

3055033R1

BOLT

BOLT - connecting rod, with nut

2шт.

14

3055034R1

NUT

- connecting rod bolt

2шт.

15

3055351R91

BEARING ASSY

BEARING - connecting rod, standard size

4шт.
