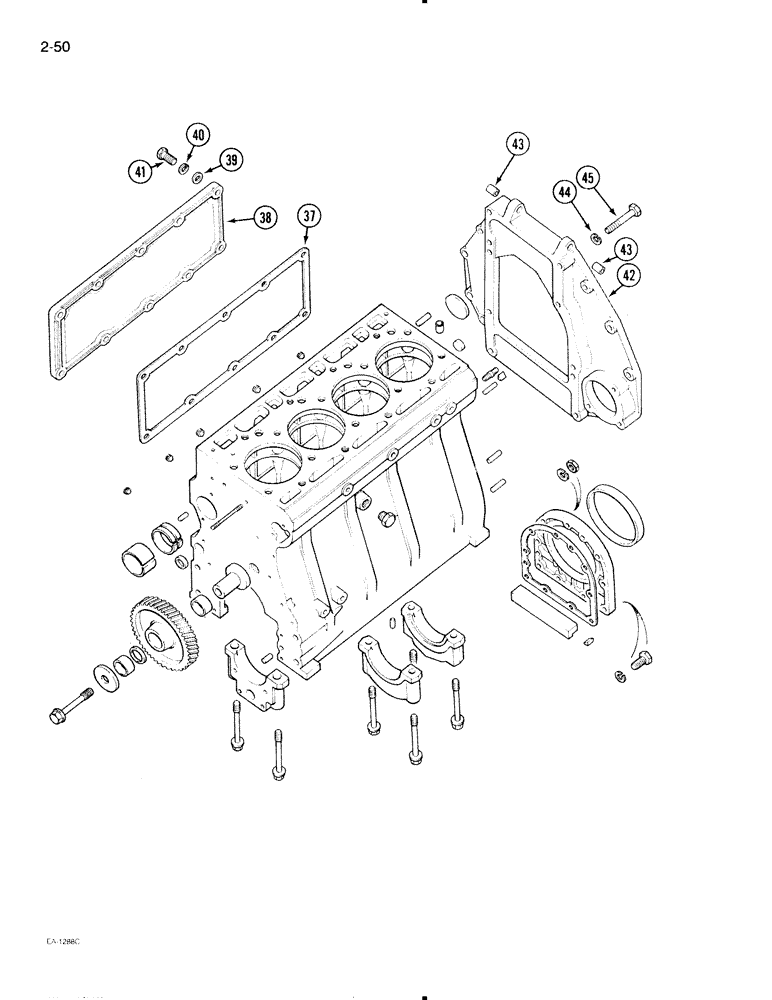

Запчасти Case IH 695 (2-50) - CYLINDER BLOCK, SIDE COVER (02) - ENGINE

37

3055393R4

GASKET,1.5mm Thk

- side cover

1шт.

Part of crankcase gaskets service kit

1шт.

38

3132155R2

COVER

- cylinder block side

1шт.

39

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

10шт.

40

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

10шт.

41

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

10шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 37 (See Figure 2-66)

1шт.

42

3136059R22

PLATE ASSY.

HOUSING - flywheel, Includes: Ref. 43

1шт.

43

3136060R2

BUSHING

flywheel housing

2шт.

44

3050128R1

LOCK WASHER

- Lock, Flywheel housing

4шт.

45

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Flywheel housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.
