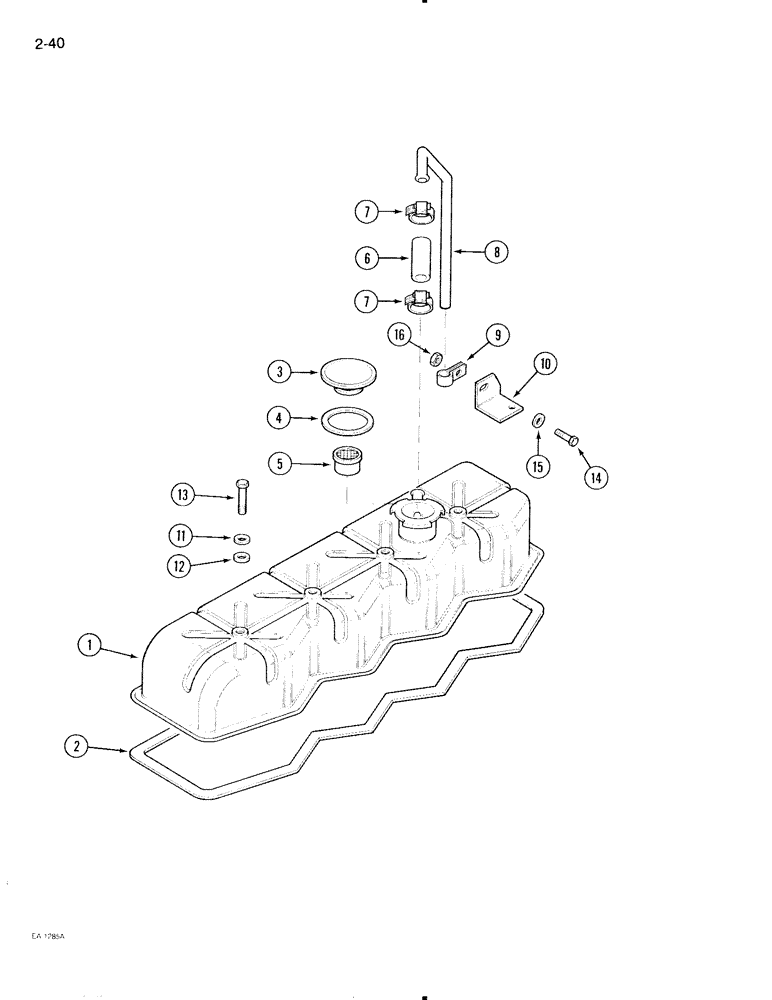

Запчасти Case IH 695 (2-40) - VALVE HOUSING COVER (02) - ENGINE

1

1806831C1

VALVE COVER

COVER - valve housing

1шт.

2

3138642R1

GASKET

- valve housing cover

1шт.

Part of cylinder head gaskets service kit

1шт.

3

3136337R91

COVER

CAP ASSEMBLY - breather, Includes: Ref. 4

1шт.

4

3136338R1

GASKET,45mm ID x 68mm OD x 2.3mm Thk

- breather cap

1шт.

5

3136336R1

FILTER

STRAINER - insert, breather

1шт.

6

1806928C1

HOSE

- connecting

1шт.

7

3143364R1

CLAMP,19mm - 23mm

- hose

2шт.

8

1806992C1

TUBE,18 mm OD

- breather

1шт.

9

3144023R1

CLAMP

- breather tube

1шт.

10

1806993C1

SUPPORT

BRACKET - breather tube clamp

1шт.

11

3138637R1

CUP WASHER

WASHER - valve cover

4шт.

12

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

- valve cover

4шт.

Part of cylinder head gaskets service kit

1шт.

13

13-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

4шт.

14

313-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, Grade 8

1шт.

15

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- hardened, 5/16 inch

2шт.

16

325-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 2 and 12 (See Figure 2-64)

1шт.
