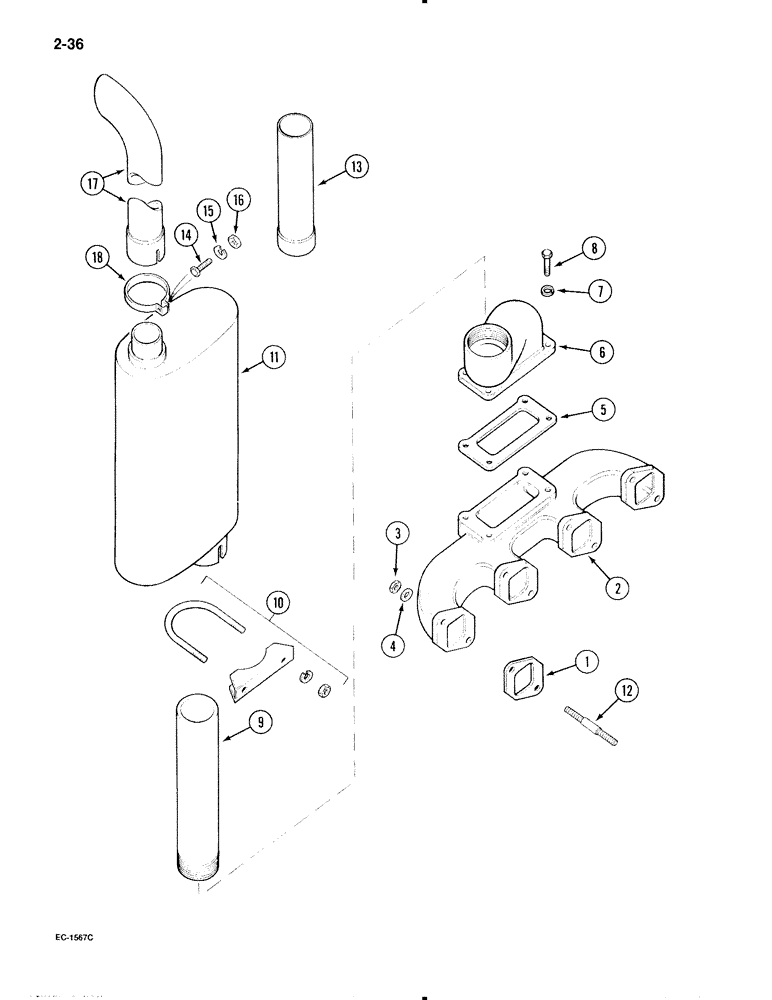

Запчасти Case IH 695 (2-36) - VERTICAL EXHAUST, PRIOR TO P.I.N. JJE0014501 (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

1шт.

Part of cylinder head gaskets service kit

1шт.

2

3136066R12

MANIFOLD ASSY

MANIFOLD - exhaust

1шт.

3

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8 inch NF

8шт.

4

95-81080

WASHER,13/32" x 3/4" x .120"

- flat, 13/16 x 3/4 x 1/8 inch

8шт.

5

3136248R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

1шт.

6

3136668R1

ELBOW

- exhaust manifold

1шт.

7

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

9

80547C1

TUBE

KIT - service, exhaust pipe (With fitting instructions)

1шт.

10

1502294C1

CLAMP

- muffler, U-type

1шт.

11

84738C2

MUFFLER

- exhaust

1шт.

12

REF

INSTRUCTION

STUD - exhaust manifold (See Figure 2-44)

8шт.

13

379661R1

PIPE

EXTENSION - exhaust (With ROPS canopy)

1шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

84755C1

PIPE

- curved exhaust

1шт.

18

1537216C1

CLAMP,50.8mm

- muffler pipe

1шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 1 (See Figure 2-64)

1шт.
