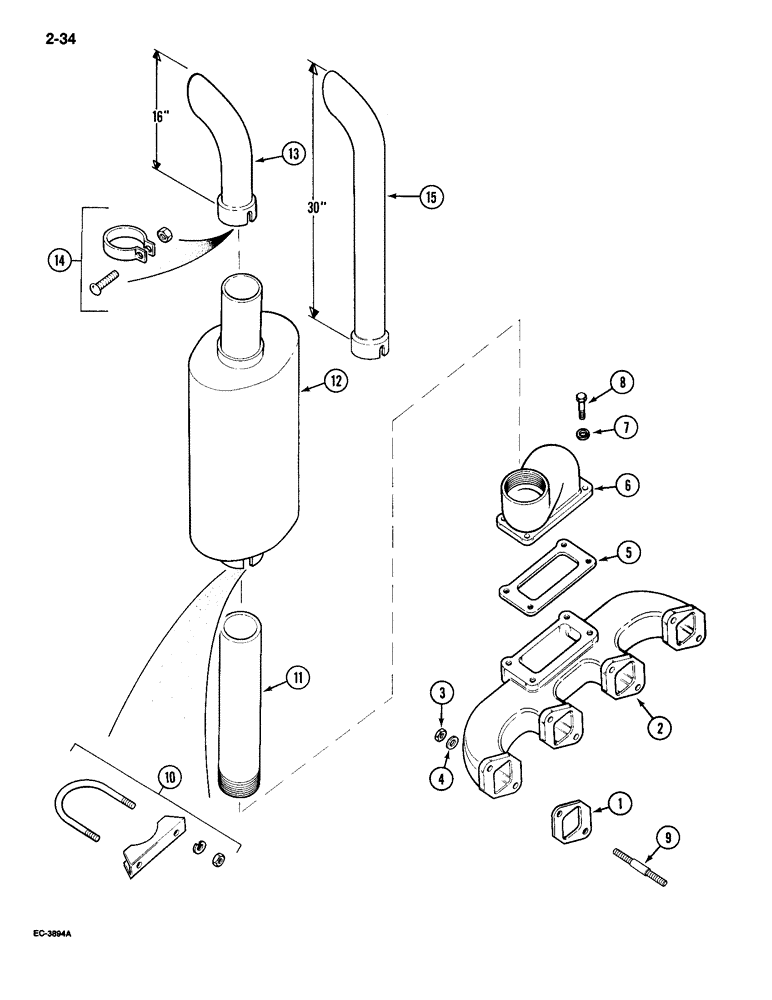

Запчасти Case IH 695 (2-34) - VERTICAL EXHAUST, P.I.N. JJE0014501 AND AFTER (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

4шт.

2

3136066R12

MANIFOLD ASSY

MANIFOLD - exhaust

1шт.

3

129-123

NUT,3/8"-24, G5

8шт.

4

95-81080

WASHER,13/32" x 3/4" x .120"

- flat 0.406 x 0.75 x 0.105 inch

8шт.

5

3136248R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

1шт.

6

1536852C1

ELBOW

- exhaust manifold

1шт.

7

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

Ref #8 (P/N A172152) - Pipe Ext. (See 595 catalog)

1шт.

9

REF

INSTRUCTION

STUD - exhaust manifold (See Figure 2-44)

8шт.

10

A13240

CLAMP,2-5/8" ID

- muffler U-type

1шт.

11

1537413C1

PIPE

- exhaust

1шт.

12

A173180

MUFFLER

- exhaust

1шт.

13

1537451C1

PIPE

- tail short

1шт.

14

1537452C1

CLAMP

- tail, Serial Range: pipe-muffler

1шт.

15

R42588

PIPE

- tail long

1шт.
