Запчасти Case IH 695 (2-30) - ETHER STARTING (02) - ENGINE

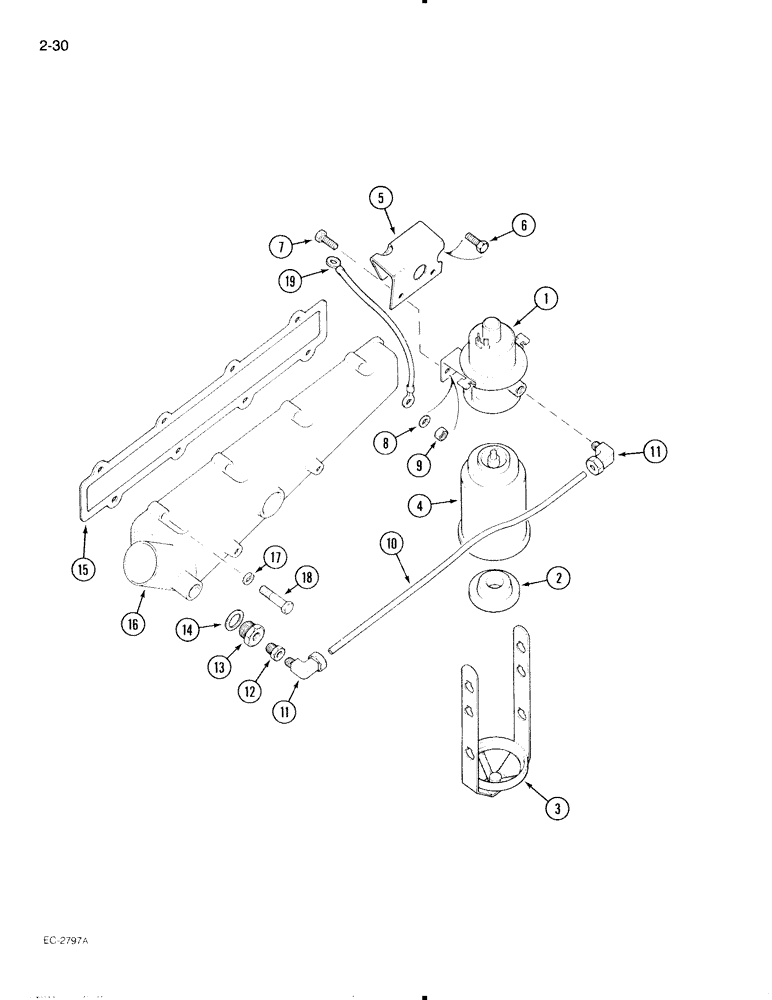

Схема запчастей Case IH 695 - (2-30) - ETHER STARTING (02) - ENGINE
14
16
5
10
15
6
11
18
9
12
4
11
17
2
1
13
7
8
19
3

Артикул

Название

Примечание

Количество

1

A143381

SOLENOID

ASSEMBLY - ether start, Includes: Ref. 2 and 3

1шт.

2

395686R1

GASKET

- injector solenoid, 15/64 inch diameter

1шт.

3

A45687

CLAMP

HANGER - ether can, (Order D77648)

1шт.

4

385064R1

START SPRAY FLUID

FLUID - ether starting, 12 ounce can

1шт.

5

84706C1

SUPPORT

BRACKET - injection mounting

1шт.

6

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

7

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

10

NSS

NOT SOLD SEPARAT

PIPE - injection feed, 16-1/8 inch (Cut from 995059R2)

1шт.

10

995059R2

TUBE

PIPE - bulk length, 20 foot roll

1шт.

11

140304

ELBOW

- 90 degree, 1/8 inch OD tube

2шт.

12

269635R91

NOZZLE CAP

NOZZLE - starting fluid

1шт.

13

3116081R1

JET

ADAPTOR - ether nozzle

1шт.

14

933945R1

SEALING RING,M23 x 28 x 2.5

RING - packing

1шт.

15

3055398R2

MANIFOLD GASKET

- intake manifold

1шт.

Part of cylinder head gaskets service kit

1шт.

16

3138825R1

MANIFOLD

- intake, intake manifold

1шт.

17

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16"), Intake manifold M8.2 ID x 16 OD x .9 Thk

8шт.

18

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2", Intake manifold

8шт.

19

3401412R1

CABLE

- ground,cab to skid, intake manifold

1шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 15 (See Figure 2-64) intake manifold

1шт.

Выбрано товаров: 22
