(2-24[A]) - AIR CLEANER, WITH SAFETY ELEMENT, COOPERS

Запчасти Case IH 695 (2-24[A]) - AIR CLEANER, WITH SAFETY ELEMENT, COOPERS (02) - ENGINE

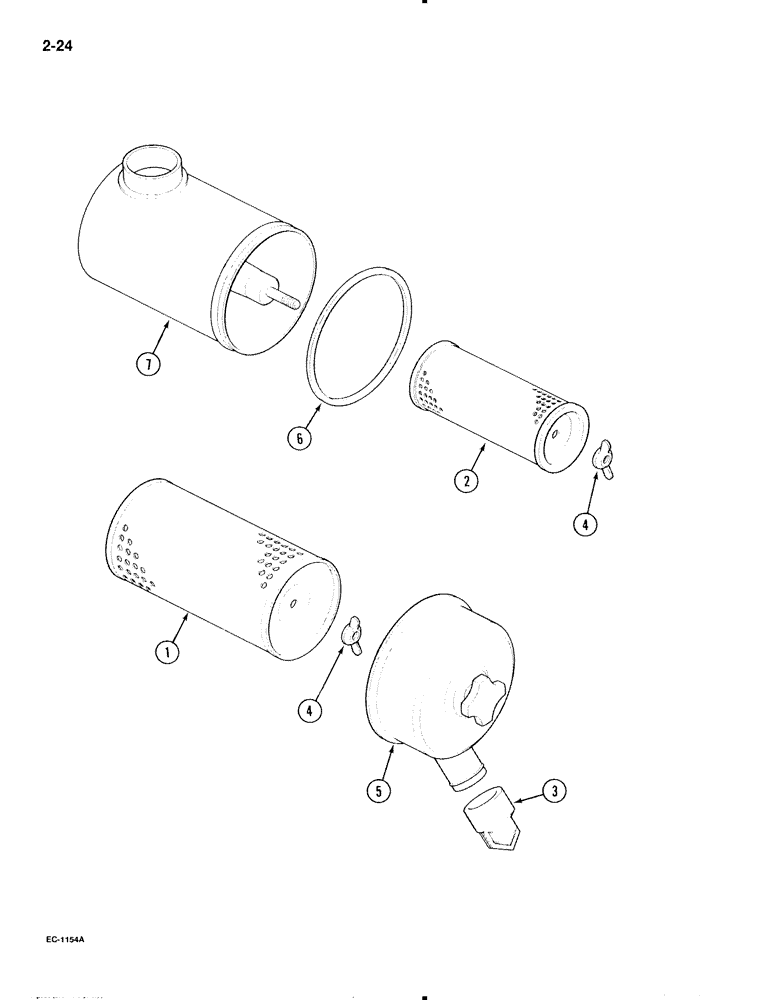

Схема запчастей Case IH 695 - (2-24[A]) - AIR CLEANER, WITH SAFETY ELEMENT, COOPERS (02) - ENGINE
4
5
4
6
1
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1265217C92

CLEANER

ASSEMBLY - air, 8 inch (Coopers), Includes: Ref. 1 - 7

1шт.

1

3125342R2

AIR FILTER

ELEMENT _ primary

1шт.

2

3125255R1

AIR FILTER

ELEMENT - secondary

1шт.

3

3124432R1

DUST VALVE

unloader

1шт.

4

3124435R1

NUT

NUT - wing, complete with gasket

2шт.

5

3125790R1

COVER ASSY

COVER - air cleaner

1шт.

6

1265236C1

GASKET

- O-ring

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.
