Запчасти Case IH 695 (9-132) - DECALS (09) - CHASSIS/ATTACHMENTS

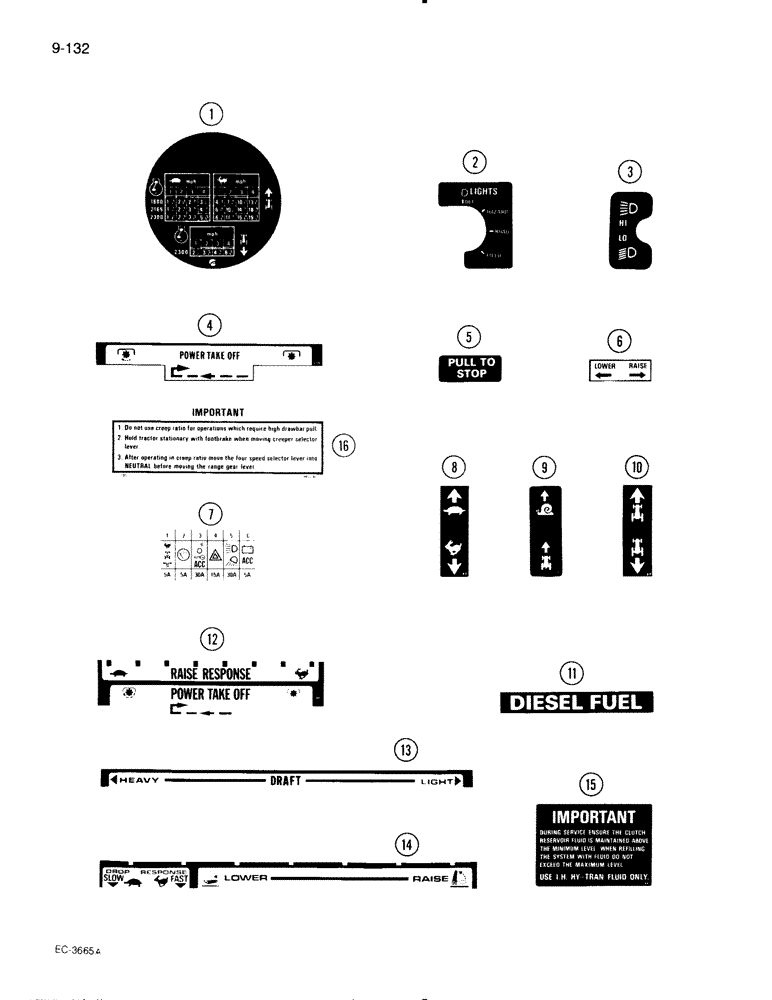

Схема запчастей Case IH 695 - (9-132) - DECALS (09) - CHASSIS/ATTACHMENTS
8
14
12
4
9
1
3
2
15
10
5
6
16
7
13
11

Артикул

Название

Примечание

Количество

1

1093093R1

DECAL

- speed chart, mph (Used with 13.6 x 38 or 15.5 x 38 tires)

1шт.

1

1287572C1

DECAL

- speed chart, mph (Used with 14.9 x 24 or 16.9 x 24 tires)

1шт.

1

1093221R1

DECAL

- speed chart, mph (Used with 14.9 x 30 or 16.9 x 30 tires)

1шт.

2

1265116C1

PRODUCT GRAPHIC

DECAL - light switch

1шт.

3

1273644C1

DECAL

DECAL - dimmer switch

1шт.

3

1265230C1

PRODUCT GRAPHIC

DECAL - light switch, French Language

1шт.

4

1536689C1

PRODUCT GRAPHIC

DECAL - IPTO guide

1шт.

5

1333014C1

DECAL

- fuel control

1шт.

6

537080R2

PRODUCT GRAPHIC

DECAL - auxiliary valve control

1шт.

6

1092881R2

DECAL

- auxiliary valve control, French Language

1шт.

7

1536851C1

PRODUCT GRAPHIC

DECAL - fuse box symbols (Without cab)

1шт.

7

1536470C1

DECAL

- fuse box symbols(With cab) (Prior to P.I.N. JJE0001947)

1шт.

7

1537381C2

DECAL

- fuse box symbols(With cab) (P.I.N. JJE0001947 and After)

1шт.

8

533592R1

PRODUCT GRAPHIC

DECAL - governor control

1шт.

9

1985097C2

DECAL

- creeper speed

1шт.

10

533593R2

PRODUCT GRAPHIC

DECAL - forward and reverse

1шт.

11

321-2601

DECAL

- diesel fuel

1шт.

12

1135102R1

PRODUCT GRAPHIC

DECAL - IPTO and raise response guide

1шт.

12

1135103R1

PRODUCT GRAPHIC

DECAL - IPTO and raise response guide, French language

1шт.

13

537664R1

PRODUCT GRAPHIC

DECAL - draft control guide

1шт.

13

1092679R1

DECAL

- draft control guide, French language

1шт.

14

537663R1

PRODUCT GRAPHIC

DECAL - drop response guide

1шт.

14

1092694R1

PRODUCT GRAPHIC

DECAL - drop response guide, French language

1шт.

15

1135161R2

DECAL

- clutch fluid

1шт.

16

1985279C2

DECAL

- important - creep speed

1шт.

Выбрано товаров: 25
