Запчасти Case IH 695 (9-126) - STABILIZER, THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

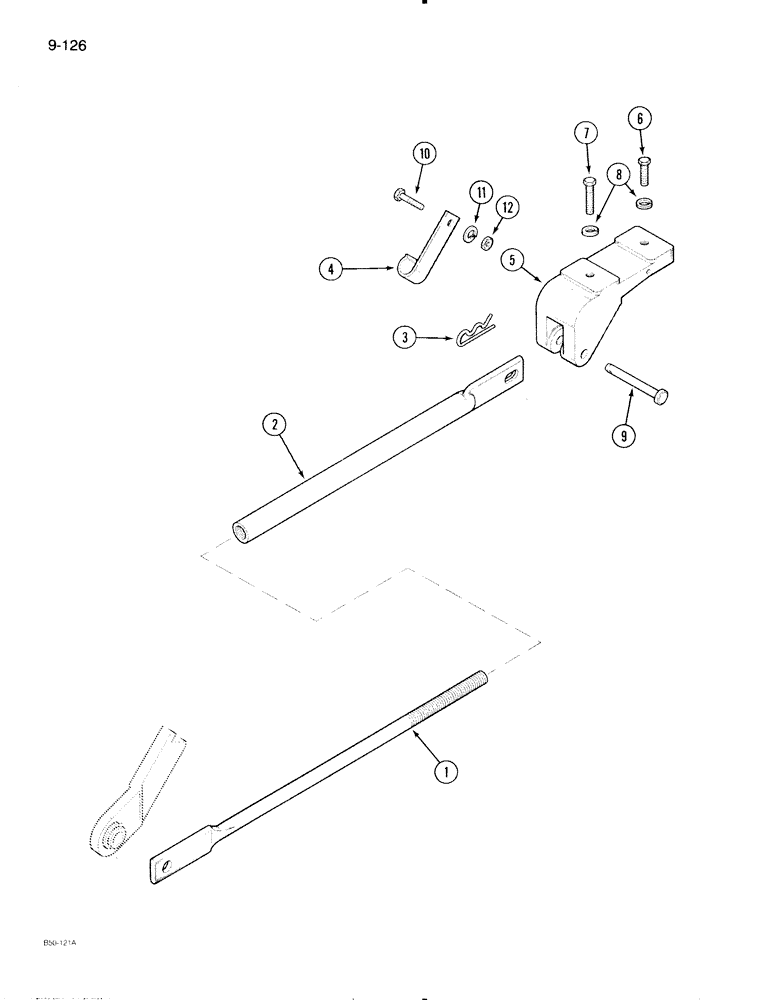

Схема запчастей Case IH 695 - (9-126) - STABILIZER, THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS
4
6
12
5
10
2
1
11
8
3
9
7

Артикул

Название

Примечание

Количество

1

380578R1

ROD

- stabilizer end

2шт.

2

529344R1

TUBE

- stabilizer end rod (Flange type rear axle)

2шт.

2

529345R1

TUBE

- stabilizer end rod (Bar type rear axle)

2шт.

3

1970957C1

SPRING

PIN - quick attachable

2шт.

4

535888R1

CLIP

- stabilizer rod end holding (Without cab)

2шт.

5

529342R3

BRACKET

- stabilizer mounting (Flange type rear axle)

2шт.

5

529343R1

BRACKET

- stabilizer mounting (Bar type rear axle)

2шт.

6

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

2шт.

7

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

529346R1

PIN

- stabilizer rod tube

2шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

Выбрано товаров: 14
