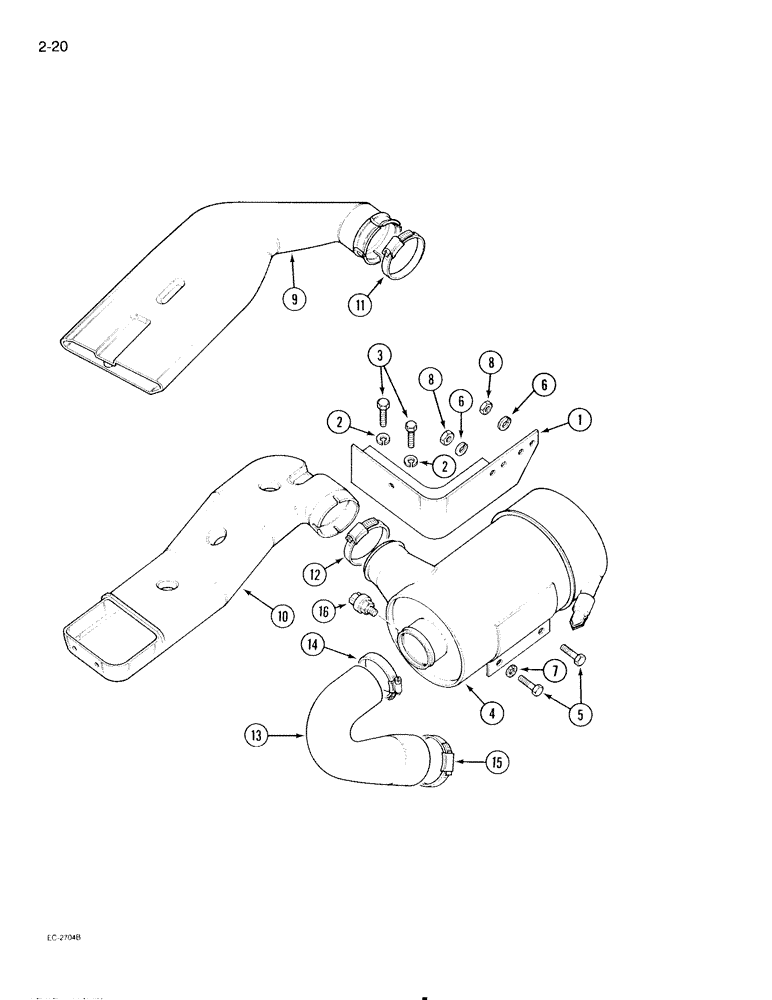

Запчасти Case IH 695 (2-20) - AIR CLEANER (02) - ENGINE

1

3121420R1

SUPPORT

BRACKET - air cleaner mounting

1шт.

1

1333058C1

BRACKET

- air cleaner mounting (Orchard tractor)

1шт.

1

1333025C1

BRACKET

- air cleaner mounting (MFD without cab)

1шт.

2

492-11038

LOCK WASHER,3/8"

2шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

4

3125198R94

AIR CLEANER

CLEANER ASSEMBLY - air (Coopers)(Without air conditioning) (See Figure 2-22)

1шт.

4

84490C91

AIR CLEANER

CLEANER ASSEMBLY - air, 8 inch (Coopers No. CD2037) (With air conditioning)(See Figure 2-24)

1шт.

4

1265217C92

CLEANER

ASSEMBLY - air (Coopers)(Without cab)(See Figure 2-24A)

1шт.

4

3125250R92

AIR CLEANER

CLEANER - air Donaldson (See Figure 2-28) (No longer available, order 3125198R94)

1шт.

4

3125248R94

AIR CLEANER

CLEANER - air Coopers SK-15235 (See Figure 2-26)

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Without air conditioning) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(With air conditioning) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, external tooth, 3/8 inch

1шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

529864R1

DUCT

- air inlet (Without air conditioning)

1шт.

9

529864R1

DUCT

- air inlet (Without air conditioning)(Use with 3125198R94)

1шт.

9

3129847R1

DUCT

- air inlet (With air conditioning)(Use with 1265217C92)

1шт.

REF #9 - 3129847R1 WAS ALSO USED ON UNITS WITHOUT AIR CONDITIONING.

1шт.

10

99657C1

DUCT

- air inlet (With air conditioning)

1шт.

11

21423R1

CLAMP

- hose, 3-5/16 inch (Without air conditioning)

1шт.

12

985851R91

HOSE CLAMP,#64, 3.56/4.50 Type F Worm

CLAMP - hose, 4-1/2 inch (With air conditioning)

1шт.

13

402622R1

INTAKE AIR HOSE,69.80 mm ID x 194.30 mm

- Air Cleaner Outlet (Without air conditioning) 69.80 mm ID x 194.30 mm

1шт.

13

3125121R3

INTAKE AIR HOSE,70.00 mm ID, 88.90 mm ID x 255.00 mm

Air Cleaner Outlet (With air conditioning) 70.00 mm ID, 88.90 mm ID x 255.00 mm

1шт.

14

539994R1

CLAMP

- hose, No. 350S (Without air conditioning)

2шт.

14

1265535C1

CLAMP

- hose, No. 048, Serial Range: (Optional-539994R1)

2шт.

15

894005H1

CLAMP

- hose No. 400S (With air conditioning)

1шт.

15

1265536C1

CLAMP

- hose, Serial Range: (Optional-894005H1)

1шт.

16

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator

1шт.
