Запчасти Case IH 695 (9-122) - HITCH LEVELLING HANDLE, INTERNAL (09) - CHASSIS/ATTACHMENTS

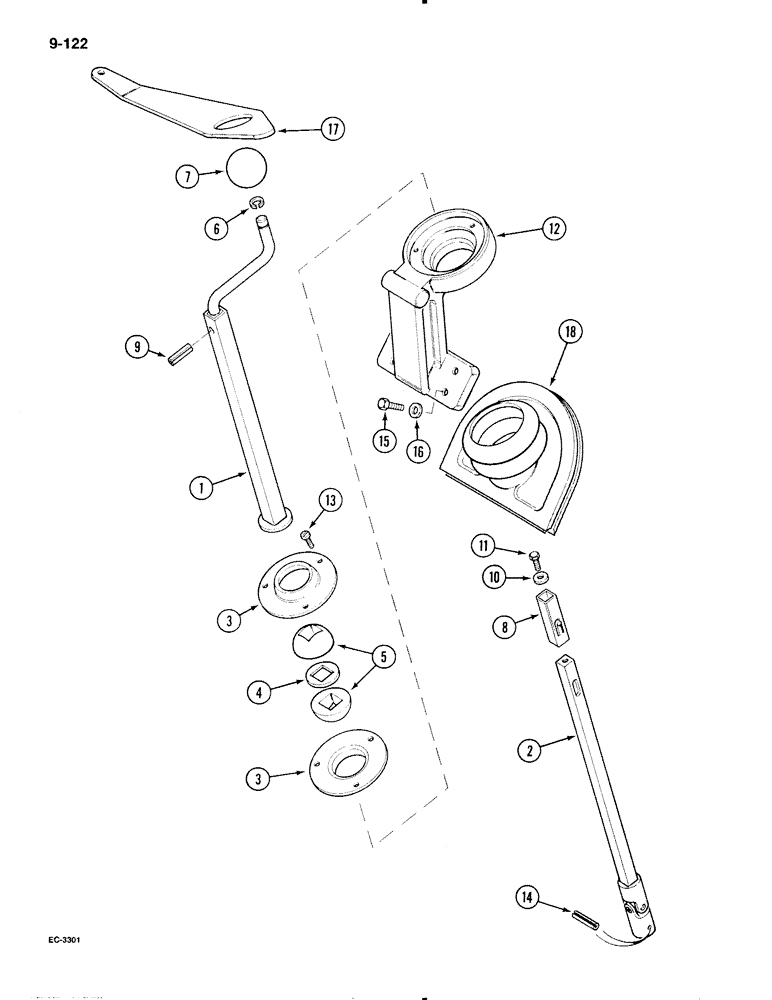

Схема запчастей Case IH 695 - (9-122) - HITCH LEVELLING HANDLE, INTERNAL (09) - CHASSIS/ATTACHMENTS
2
11
18
3
4
9
10
16
5
1
15
13
6
7
17
12
3
14
8

Артикул

Название

Примечание

Количество

1970624C1

LEVER ASSY.

LEVER ASSEMBLY - hitch levelling, Includes: Ref. 1 - 18

1шт.

1

1970813C1

ROD ASSY.

CRANK - arm, upper

1шт.

2

1970816C2

ROD ASSY.

CRANK - arm, lower

1шт.

3

1970818C1

BALL JOINT

SOCKET - lower, ball retainer

1шт.

4

1970819C1

SQ HOLE WASHER

- ball

1шт.

5

K303520

BALL JOINT

BALL - swivel

2шт.

6

K621790

RING, SNAP

RING - snap

1шт.

7

K919763

BUTTON

KNOB - levelling handle

1шт.

8

K303531

SLEEVE

SLIDE - arm

1шт.

9

738-1832

LOCK PIN,M8 x 32, Slotted

PIN - spring, 8 x 32 mm

1шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

11

613-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

- hex, 6 mm x 10 mm

1шт.

12

1970823C1

SUPPORT

- hitch levelling assembly

1шт.

13

30954R1

SCREW,Cross Pan Hd, M5 x 10

- ball socket, 5mm x 10 mm

3шт.

14

30323R1

LOCK PIN,M5 x 26, Slotted

PIN - cotter, 5 x 26 mm

1шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

16

934173R1

WASHER

- flat, 6 mm

4шт.

17

1970866C1

STRAP

- levelling lever

1шт.

18

1500224C1

BOOT

- rear window

1шт.

Выбрано товаров: 19
