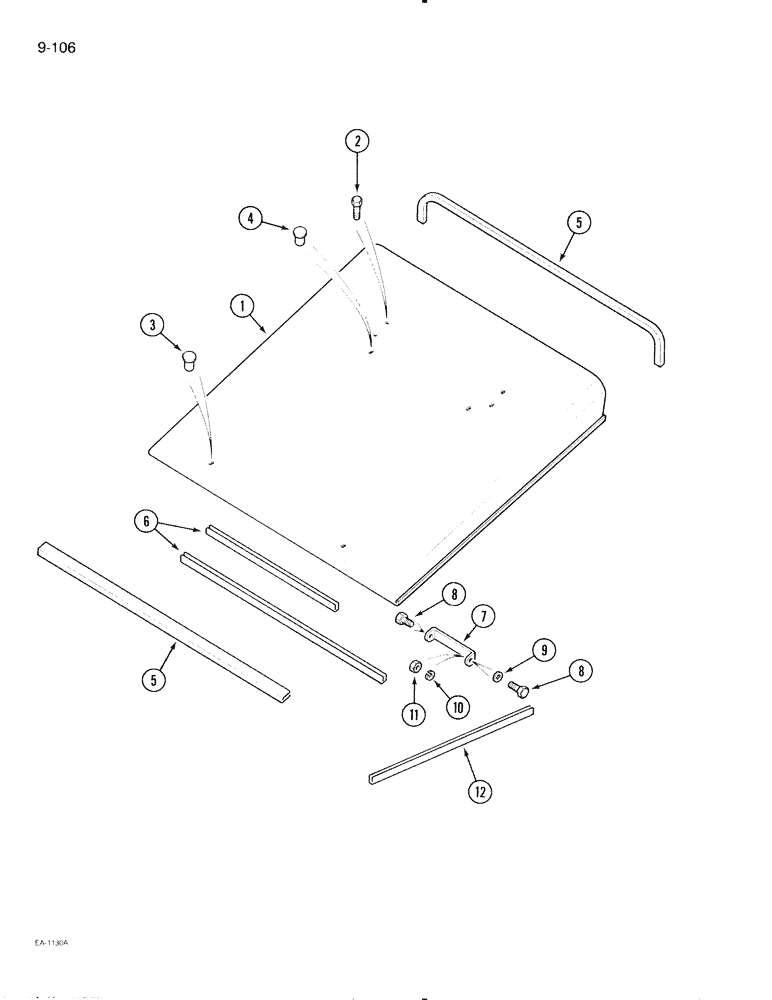

Запчасти Case IH 695 (9-106) - ROLL OVER PROTECTION FRAME, TWO POST ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

1281633C3

ROOF

ASSEMBLY - canopy

1шт.

optional fiberglass roof assm. - 118375c4

1шт.

2

434-832

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

8шт.

3

353-406

PLUG,Dome, .625" hole, Nylon

- restraining cable

2шт.

4

3123992R1

PLUG

- 7 mm, canopy blanking (Without headliner trim)

2шт.

4

353-400

PLUG,Dome, .250" hole, Nylon

Blanking (Optional to 3123992R1) Dome, .250" hole, Nylon

2шт.

5

NSS

NOT SOLD SEPARAT

STRIP - trim (Cut from 118483C2) (Canopy with sheared edges)

2шт.

5

118483C2

STRIP, METERS

STRIP - roof trim, bulk length

1шт.

6

NSS

NOT SOLD SEPARAT

STRIP - trim, 62 inch (Cut from 1327666C1)

2шт.

6

1327666C1

SEAL

STRIP - trim, bulk length 50 foot roll

1шт.

7

118531C2

BRACKET

- stabilizer

4шт.

8

628-6020

BOLT,Hex, M6 x 20mm, Cl 10.9, Full Thd

8шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

10

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

8шт.

11

825-1406

NUT,M6, Cl 8

8шт.

12

NSS

NOT SOLD SEPARAT

STRIP - trim (Cut from 118524C2)

2шт.

118524C2

SEALING STRIP

STRIP - trim, bulk length

1шт.
