(9-102) - SEAT BELT, TRACTOR WITHOUT CAB, STATIC SEAT

Запчасти Case IH 695 (9-102) - SEAT BELT, TRACTOR WITHOUT CAB, STATIC SEAT (09) - CHASSIS/ATTACHMENTS

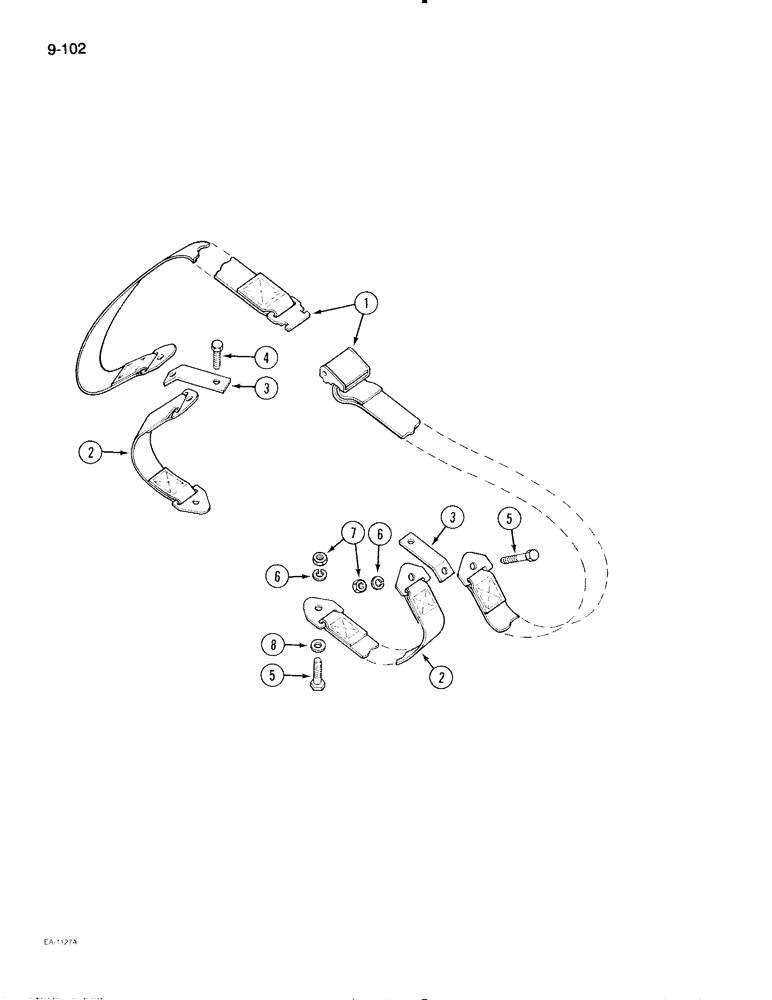

Схема запчастей Case IH 695 - (9-102) - SEAT BELT, TRACTOR WITHOUT CAB, STATIC SEAT (09) - CHASSIS/ATTACHMENTS
3
5
6
5
8
2
1
4
6
7
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

537339R1

SAFETY BELT

SAFETY BELT, 2"

1шт.

2

539258R1

SAFETY BELT

SAFETY BELT, Retainer

2шт.

3

539259R1

CLIP

- seat belt retainer

2шт.

4

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

- hex, 8 mm - 1.25 x 20 mm

2шт.

5

344096C3

BOLT

BOLT - seat belt anchor

4шт.

6

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

7

429-117

NUT,7/16"-20, G8

- hex, 7/16 inch, grade 8

4шт.

8

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

4шт.
