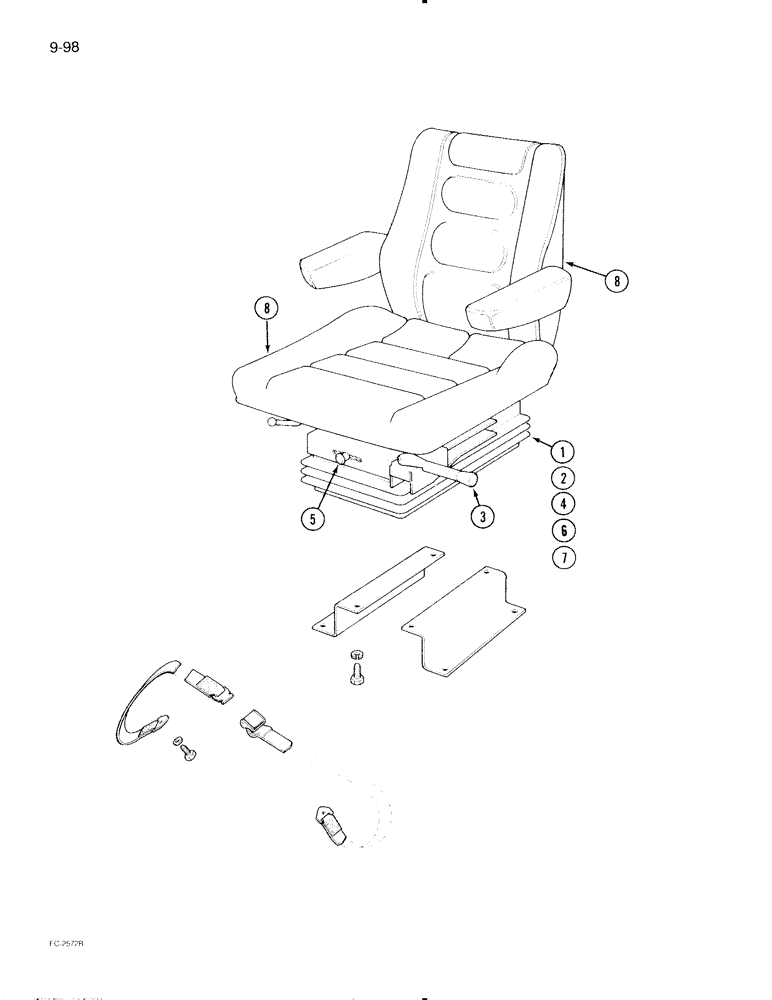

Запчасти Case IH 695 (9-098) - SUSPENSION SEATS, TRACTOR WITH CAB (09) - CHASSIS/ATTACHMENTS

97288C1

SEAT ASSY.

SEAT ASSEMBLY - deluxe, Includes: Ref. 1 - 8 and Ref. 9 - 12 on Figure 9-100

1шт.

1

1977757C1

KIT

- suspension, cover, includes clips and cover

1шт.

A49658

FASTENER

CLIP - canoe

10шт.

NSS

NOT SOLD SEPARAT

COVER - suspension unit

1шт.

NSS

NOT SOLD SEPARAT

CLIP

1шт.

2

1977758C1

SUSPENSION

KIT - suspension, complete, includes nut, handle, stud, spacers, and gear

1шт.

3

1977759C1

KIT

- suspension, weight adjuster, includes nut, handle, stud, spacers, and gear

1шт.

3123322R1

THRUST WASHER

WASHER - thrust

1шт.

3123324R1

TRUNNION

- adjuster (Small)

1шт.

3123326R1

NUT

- clamp

1шт.

3123327R1

HANDLE

- complete

1шт.

NSS

NOT SOLD SEPARAT

STUD - adjuster

1шт.

NSS

NOT SOLD SEPARAT

SPACER

2шт.

538570R1

GEAR

1шт.

4

1977760C1

KIT

- roller assembly, includes bearings, pins, rollers and nuts

1шт.

3123316R1

BUSHING

BEARING

1шт.

NSS

NOT SOLD SEPARAT

PIN - roll

2шт.

NSS

NOT SOLD SEPARAT

BEARING

2шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

3123318R1

PIVOT PIN

PIN - pivot

2шт.

3220539R1

BUSHING

ROLLER

4шт.

3123321R1

PIVOT PIN

PIN - pivot

2шт.

43362

NUT,M8 x 1.25, Cl 10

- lock, 8 mm

2шт.

5

1977761C1

KIT

- suspension, height adjuster, includes knob, spring, and bolt

1шт.

3123309R1

BUTTON

KNOB - slide

1шт.

3220537R1

SPRING

- slider

1шт.

3220548R1

SCREW

BOLT - hex, 6 mm - 1.0 x 25 mm

1шт.

6

1977762C1

KIT

- suspension, damper assembly, includes nut, pin, and damper

1шт.

NSS

NOT SOLD SEPARAT

NUT - starlock

1шт.

NSS

NOT SOLD SEPARAT

PIN - headed

1шт.

NSS

NOT SOLD SEPARAT

DAMPER - complete

1шт.

7

1977763C1

KIT

- suspension, bump stops, includes buttons and bumper

1шт.

3123308R1

BUMPER

BUTTON - bumper

2шт.

3220516R1

STOP

BUMPER - rubber

1шт.

8

1977764C1

SEAT BACK

KIT - upper assembly, includes parts listed below

1шт.

NSS

NOT SOLD SEPARAT

COVER - back

1шт.

NSS

NOT SOLD SEPARAT

COVER - seat

1шт.

NSS

NOT SOLD SEPARAT

FOAM - back

1шт.

NSS

NOT SOLD SEPARAT

FOAM - seat

1шт.

NSS

NOT SOLD SEPARAT

FRAME - seat assembly

1шт.

NSS

NOT SOLD SEPARAT

CLIP - spring

2шт.

NSS

NOT SOLD SEPARAT

BAR - trim

2шт.

NSS

NOT SOLD SEPARAT

RING - hog

3шт.

NSS

NOT SOLD SEPARAT

ROD - pouch

1шт.

NSS

NOT SOLD SEPARAT

CLIP

15шт.

NSS

NOT SOLD SEPARAT

PLATE - adapter

1шт.

NSS

NOT SOLD SEPARAT

SCREW - 6 x 12 mm

4шт.

NSS

NOT SOLD SEPARAT

WASHER - lock, 6 mm

4шт.
