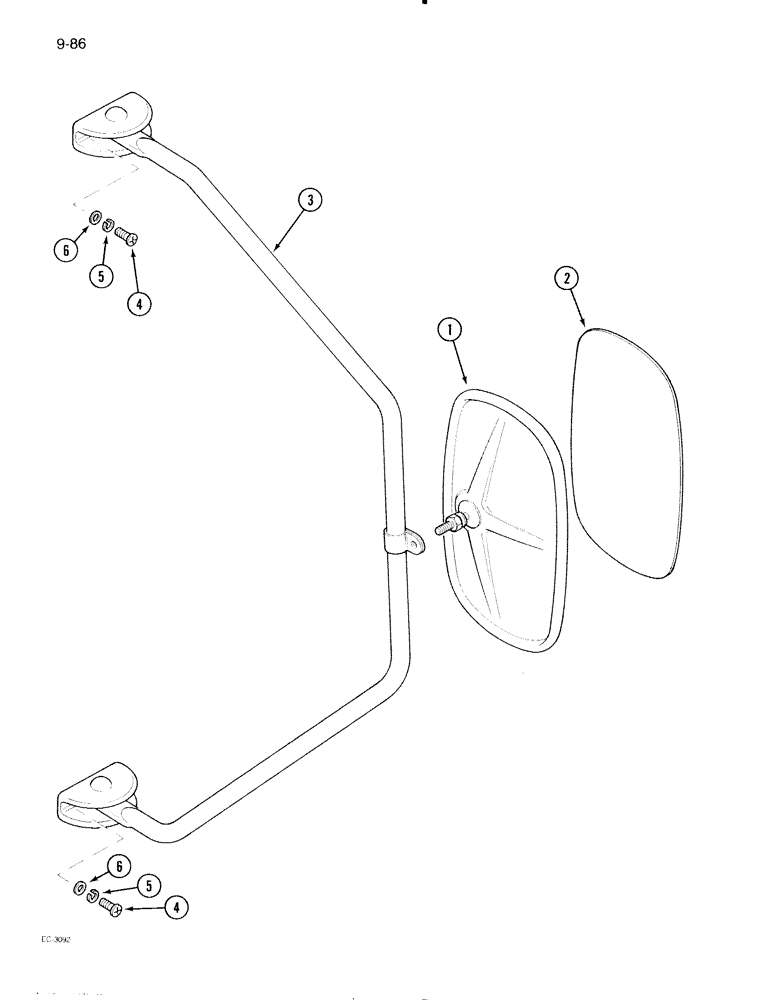

Запчасти Case IH 695 (9-086) - CAB, WING MIRRORS, D TYPE (09) - CHASSIS/ATTACHMENTS

1

1970874C1

MIRROR

HEAD ASSEMBLY - mirror, Includes: Ref. 2

2шт.

2

1970873C1

GLASS,CAB

GLASS - mirror (Order K261635)

1шт.

3

1970875C1

ARM ASSY.

ARM ASSEMBLY - mirror, 'D' type

2шт.

4

30301R1

SCREW,Cross Pan Hd, M8 x 20

- pan, cross recess, 8 x 20 mm

8шт.

5

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

8шт.

6

934675R1

WASHER,M8 x 16 x 1.6

Flat M8 x 16 x 1.6

8шт.
