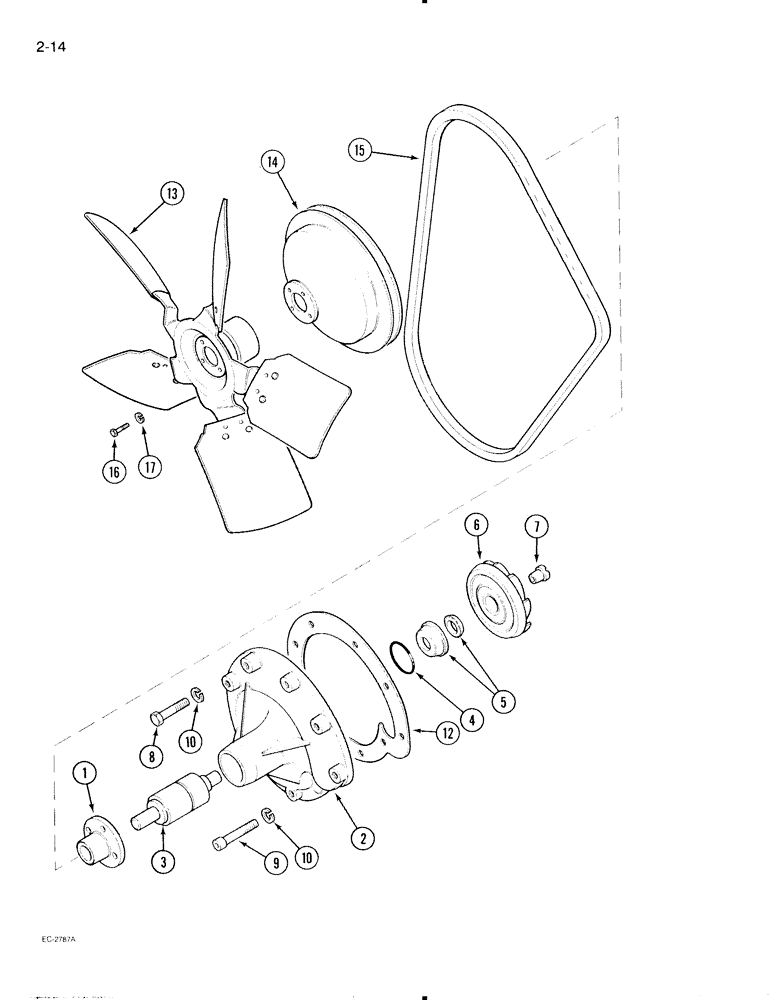

Запчасти Case IH 695 (2-14) - WATER PUMP (02) - ENGINE

3136053R92

PUMP, WATER

PUMP ASSEMBLY - water, Includes: Ref. 1 - 6

1шт.

3136053R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735102C91

REMAN-WATER PUMP

PUMP ASSEMBLY - water, remanufactured, Includes: Ref. 1 - 6

1шт.

1928123C1

CORE-WATER PUMP

RETURN NUMBER - water pump (Use this part number to return water pump core for credit)

1шт.

1

3132146R1

HUB

- pulley

1шт.

1

3132148R1

HUB

- pulley, Serial Range: (Optional-3132146R1)

1шт.

2

3132677R41

BODY

- pump, complete with bearing, Includes: Ref. 3

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

- pump

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - water pump

1шт.

Part of reconditioning water pump kit P/N 3055285R94

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - complete with sealing ring

1шт.

Part of reconditioning water pump kit P/N 3055285R94

1шт.

6

3055211R2

IMPELLER

- pump

1шт.

7

3055308R1

PLUG

- closing

1шт.

8

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2"

7шт.

9

61-33122

HEX SOC SCREW,5/16"-18 x 1 3/8"

SCREW - cap, hex socket, 5/16 NC x 1-3/8 inch

1шт.

10

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

8шт.

12

3055177R3

GASKET

- water pump

1шт.

Part of reconditioning water pump kit P/N 3055285R94

1шт.

3055285R94

GASKET KIT

KIT - reconditioning, water pump, Includes: Ref. 4, 5 and 12

1шт.

13

1275810C1

FAN

- engine cooling, 5 blade

1шт.

14

401124R2

PULLEY

- water pump

1шт.

15

3129140R1

V-BELT,13.70 mm W

Fan 13.70 mm W

1шт.

16

14-411

BOLT,Hex, 1/4" - 28 x 11/16", Gr 5, Full Thd

4шт.

17

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

13

84416C1

FAN

- engine cooling, 6 blade

1шт.

14

84624C1

PULLEY

- water pump (See Figure 2-08)

1шт.

15

3129140R1

V-BELT,13.70 mm W

Fan 13.70 mm W

1шт.

16

433061

BOLT,Hex, 1/4" - 28 x 3 1/4", Gr 5

- hex, 1/4 NF x 3-1/4 inch, grade 5

4шт.

17

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.
