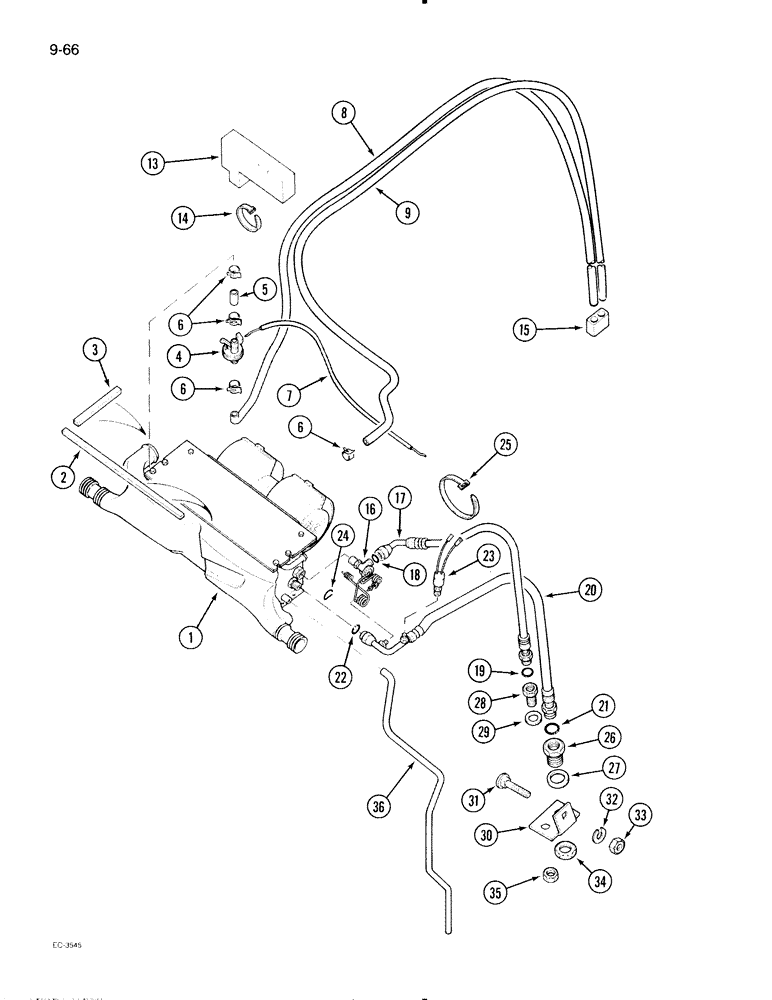

Запчасти Case IH 695 (9-066) - CAB, AIR CONDITIONING PIPES (09) - CHASSIS/ATTACHMENTS

1535159C4

CAB

- complete with trim (With air conditioning), Includes: Ref. 1 - 36

1шт.

1

1280294C92

HEATER

BLOWER ASSEMBLY - air conditioning (See Figure 9-072)

1шт.

2

3234097R1

SEALING STRIP

- Blower assy, Front and rear

2шт.

3

3234096R1

SEALING STRIP

- blower assembly, side

2шт.

4

3234102R92

VALVE

- heating water

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE - flexible, 40 mm (Cut from R54970)

1шт.

R54970

HEATER HOSE,15.88mm ID x 15240mm Bulk

15.88 mm ID x 15240.0 mm

1шт.

6

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

4шт.

7

3234197R1

CABLE

- operating, heater water valve

1шт.

8

3234103R2

HEATER HOSE,15.50 mm ID x 3000.00 mm

HOSE , Heating Water Supply 15.50 mm ID x 3000.00 mm

1шт.

9

3234104R2

HEATER HOSE,15.50 mm ID x 3340.00 mm

HOSE , Water Return 15.50 mm ID x 3340.00 mm

1шт.

13

3234122R1

SEALING STRIP

SEAL

2шт.

14

3141429R1

CABLE TIE

STRAP - cable (Order L18337)

1шт.

15

3234136R1

PAD, RUBBER

PAD - rubber (Order 1259764C1)

1шт.

16

1280333C1

VALVE

- expansion (See Figure 9-072)

1шт.

17

1280250C2

PIPE

HOSE - expansion valve to cab base, Includes: Ref. 18 and 19

1шт.

18

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

19

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

Ref #19 use 189819a1 use for air conditioned models only.

1шт.

20

1280251C2

PIPE

HOSE - evaporator to cab base, Includes: Ref. 21 and 22

1шт.

21

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

1шт.

Ref #21 use 189818a1 use for air conditioned models only.

1шт.

22

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

23

111267C4

SWITCH, A/C LOW PRES

SWITCH - low pressure

1шт.

23

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - low pressure

1шт.

24

118444C1

CLAMP

- expansion valve

1шт.

25

1281534C1

CABLE TIE

STRAP - cable (Order D136922)

5шт.

26

1280495C1

COUPLING, BREAK AWAY

COUPLING - half, male

1шт.

27

1281516C1

LOCK WASHER

WASHER - lock

1шт.

28

167869C1

FITTING

COUPLING - half, male

1шт.

29

1281517C1

LOCK WASHER

WASHER - lock

1шт.

30

1281549C3

SUPPORT

BRACKET - air conditioning coupling

1шт.

31

811-16040

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 40mm, Cl 8.8

BOLT - carriage, 6 mm - 1.00 x 40 mm

1шт.

32

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

33

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2, class 10

1шт.

34

1281518C1

JAM NUT

- hex, jam

1шт.

35

1281519C1

JAM NUT

- hex, jam

1шт.

36

1339259C1

PIPE

TUBE - condensation drain

2шт.
