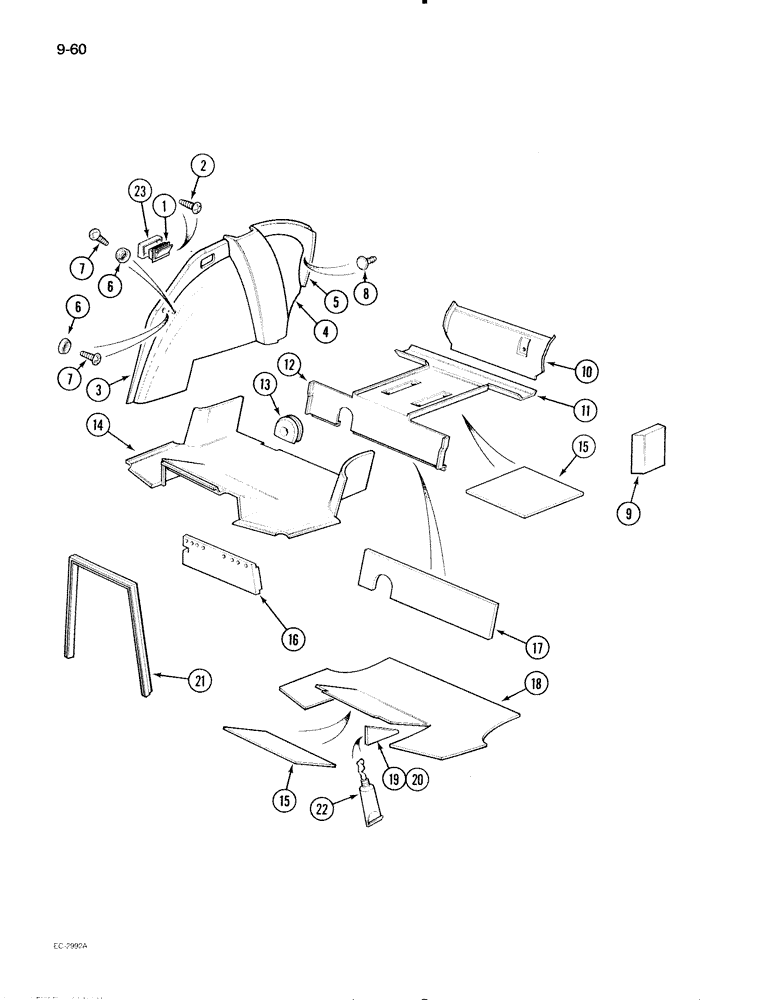

Запчасти Case IH 695 (9-060) - CAB, OPERATORS COMPARTMENT COVERING (09) - CHASSIS/ATTACHMENTS

1535159C4

CAB

- complete with trim (With air conditioning), Includes: Ref. 1 - 9

1шт.

1535196C3

CAB

- complete with trim (Without air conditioning), Includes: Ref. 1 - 9

1шт.

1

3399810R1

ASH TRAY

ASHTRAY

1шт.

2

905936R1

SELF-TAP SCREW,Oval Hd, M4.2 x 19

SCREW - tapping, oval cross recess, 4.2 x 19 mm

2шт.

3

3404184R2

LINING

- wheel housing, front left

1шт.

3

3404185R2

LINING

- wheel housing, front right

1шт.

4

3404192R2

LINING

- wheel housing, centre left

1шт.

4

3404193R2

LINING

- wheel housing, centre right

1шт.

5

3404186R3

PADDING

LINING - wheel housing, rear left

1шт.

5

3404187R3

PADDING

LINING - wheel housing, rear right

1шт.

6

3234052R1

WASHER

- cup, 6 mm

1шт.

7

905936R1

SELF-TAP SCREW,Oval Hd, M4.2 x 19

SCREW - tapping, oval cross recess, 4.2 x 19 mm

1шт.

8

3404464R1

PLUG

- rubber

4шт.

9

1502281C1

INSULATOR

- "B" post

2шт.

10

3234959R2

PADDING

INSULATOR - rear cover

1шт.

11

245894C2

MAT

- seat deck, Includes: Ref. 12

1шт.

12

245712C1

MAT

- seat deck front

1шт.

13

3401113R1

GROMMET

- differential

1шт.

14

3234965R1

MAT

- front floor

1шт.

15

245888C1

LINING

SHEET - insulation

1шт.

16

1536053C1

PADDING

INSULATOR - bulkhead, steering support

1шт.

17

1280319C1

LINING

INSULATOR - front of seat deck

1шт.

18

3405010R1

MAT

- insulation lining, front floor

1шт.

19

3399893R1

INSULATOR

STRIP - insulator, left

1шт.

20

3399894R1

INSULATOR

STRIP - insulator, right

1шт.

21

3401114R1

SEAL

- front, steering support

1шт.

22

1500876C1

SEALANT

ADHESIVE - clear (Order B17576)

1шт.

23

3404370R1

SPACER

- ashtray

1шт.
