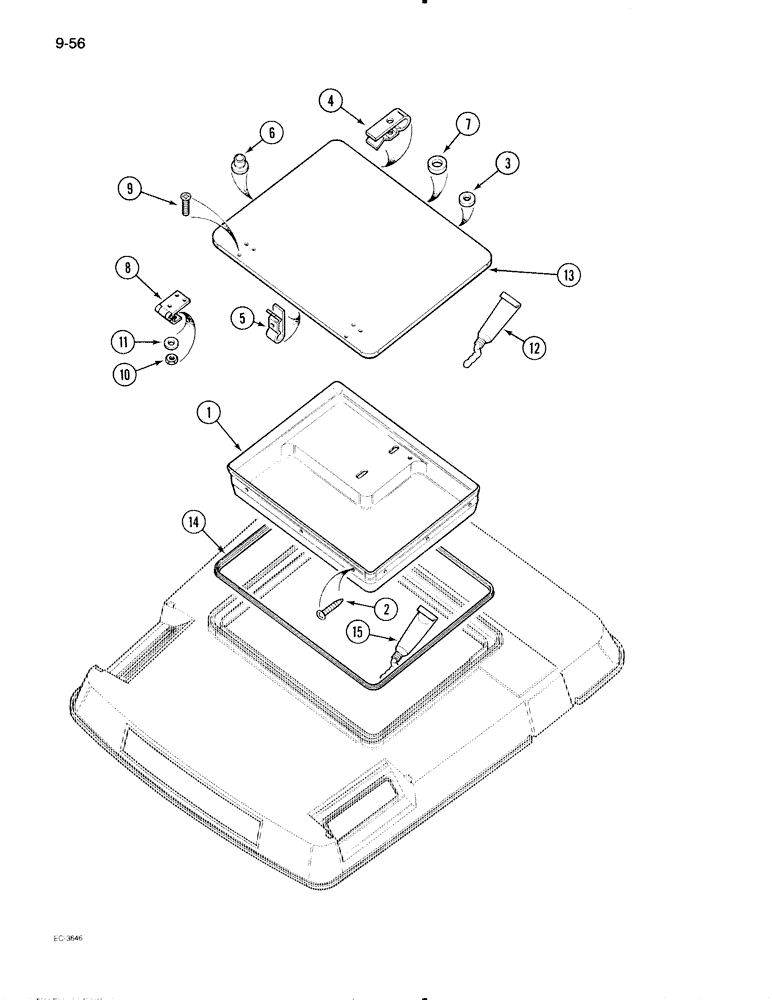

Запчасти Case IH 695 (9-056) - CAB, ROOF HATCH SEAL SERVICE KIT (09) - CHASSIS/ATTACHMENTS

82503C93

PACKAGE

KIT - service, roof hatch seal, Includes: Ref. 1 - 15 and instructions

1шт.

3093230R94

HATCH

ASSEMBLY - roof, Includes: Ref. 1 - 13

1шт.

1

82462C2

PADDING

LINING - hatch

1шт.

2

905934R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW - tapping, oval cross recess, 4.2 x 22 mm

19шт.

3

3234234R1

WASHER

3шт.

4

3234042R1

SPRING NUT

- spring, push-on, 4.2 mm

5шт.

5

3234214R1

SPRING NUT

- spring, push-on

14шт.

6

3404266R1

BUSHING

- screw

3шт.

7

P3528799

WASHER

BLOCK - boss

2шт.

8

1328160C2

HINGE

- roof hatch

2шт.

9

843-2612

SCREW,Flat , M6 x 16.3mm OAL, Cl 4.8

- countersunk, cross recess, 6 x 16 mm

2шт.

10

832-10406

NUT,M6 x 1, Cl 8

LOCK, M6 x 1, Cl 8

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

3234047R1

PLASTIC GASKET

ADHESIVE - silicon

1шт.

13

82456C3

HATCH

- cab roof

1шт.

14

1328329C2

SEAL

- roof hatch

1шт.

15

89675C1

ADHESIVE

- black silicon, 310 ml (Order 3234433R1)

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - fitting

1шт.
