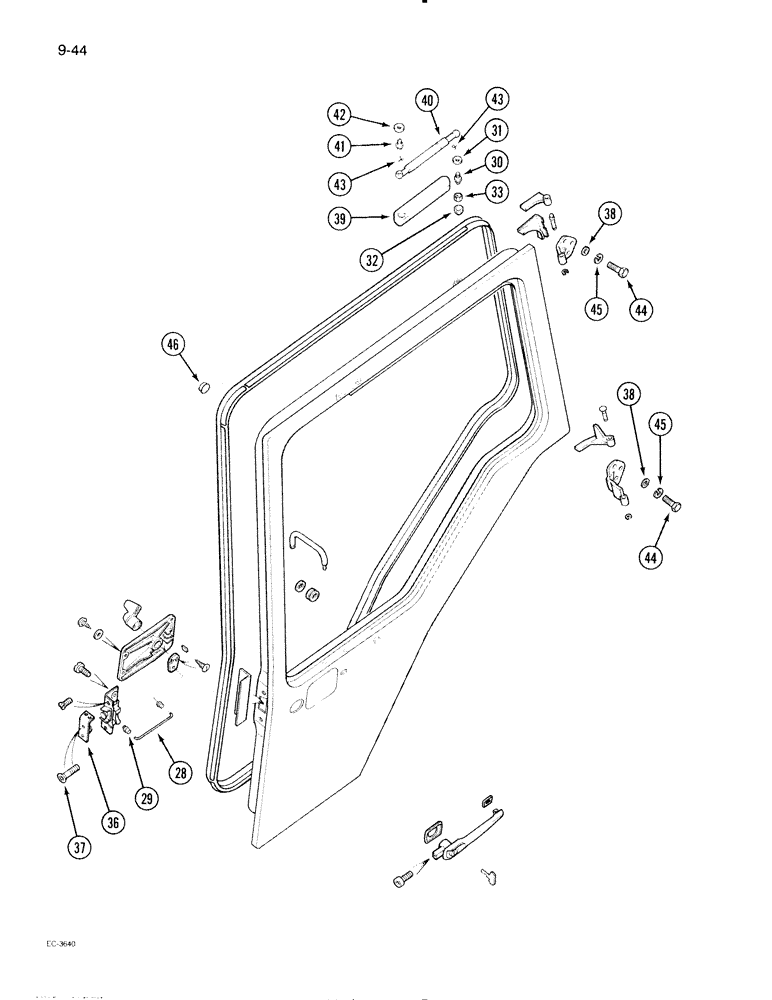

Запчасти Case IH 695 (9-044) - CAB, DOORS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

DOOR ASSEMBLY - left (Continued from Figure 9-042), Includes: Ref. 28 - 33 and 1 - 27 on Figure 9-042

1шт.

REF

INSTRUCTION

DOOR ASSEMBLY - right (Continued from Figure 9-042), Includes: Ref. 28 - 33 and 1 - 27 on Figure 9-042

1шт.

28

3234130R1

ROD

- operating

1шт.

29

3234129R1

CLIP

- handle

1шт.

30

3234063R1

BALL STUD,M10 x 1.5

STUD - ball, 13 mm diameter

1шт.

31

892-11010

LOCK WASHER,M10

1шт.

32

3221520R1

CAP

PLUG - cap, 10 mm

1шт.

33

825-1410

NUT,M10, Cl 8

(Replaces 933774R1) M10, Cl 8

1шт.

36

3234105R1

CATCH

- left door

1шт.

36

3234106R1

CATCH

- right door

1шт.

37

931860R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8

- countersunk, hex socket, 8 x 20 mm

4шт.

38

934673R1

WASHER,M8.4 x 25 x 2

- plain, 8 mm

12шт.

39

3399427R1

PROTECTOR

- left door

1шт.

39

3399428R1

PROTECTOR

- right door

1шт.

40

3232937R1

CYLINDER, GAS

STRUT - gas filled

2шт.

41

3234063R1

BALL STUD,M10 x 1.5

STUD - ball, 13 mm diameter

2шт.

42

892-11010

LOCK WASHER,M10

2шт.

43

3233348R1

CLIP

- retaining

4шт.

44

626-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, 8 mm - 1.25 x 25 mm class 10.9

12шт.

45

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

46

3150667R1

PLUG

- door frame

2шт.
