Запчасти Case IH 695 (9-038) - CAB, FRAME (09) - CHASSIS/ATTACHMENTS

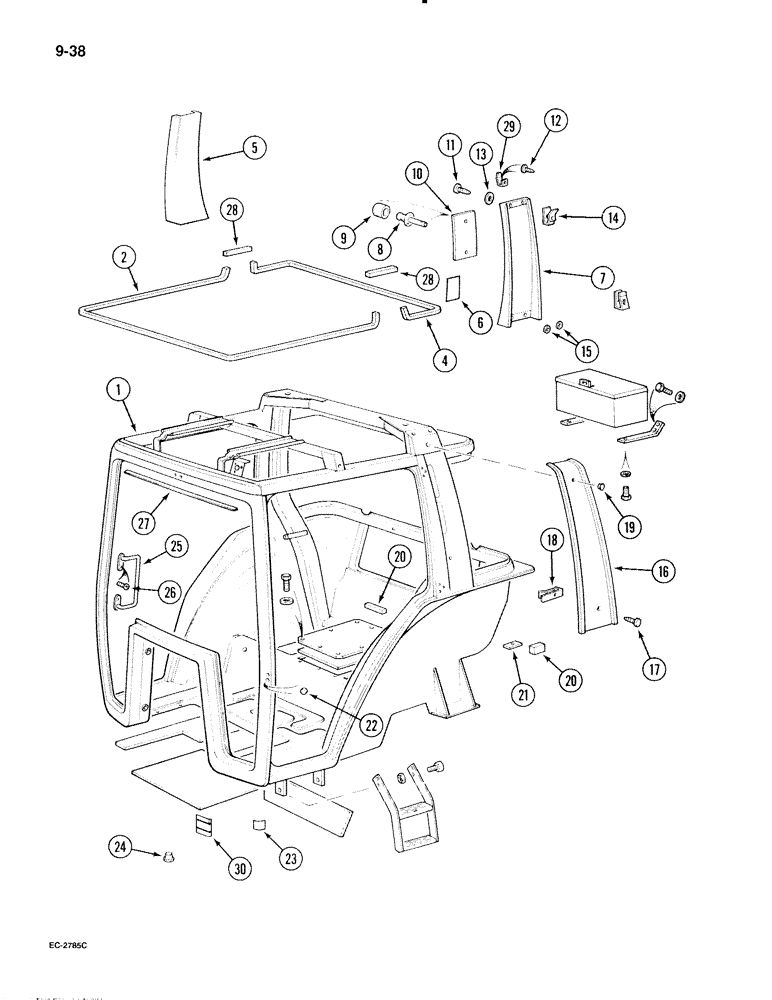

Схема запчастей Case IH 695 - (9-038) - CAB, FRAME (09) - CHASSIS/ATTACHMENTS
20
28
16
10
7
11
30
8
25
28
6
26
4
5
27
12
20
1
13
14
15
18
17
29
2
9
24
22
23
21
19

Артикул

Название

Примечание

Количество

1535159C4

CAB

- complete with trim (With air conditioning), Includes: Ref. 1 - 29

1шт.

1535196C3

CAB

- complete with trim (Without air conditioning), Includes: Ref. 1 - 29

1шт.

1

1530709C93

FRAME ASSEMBLY - cab

1шт.

2

1280449C2

SEALING STRIP

- foam, 2990 mm

1шт.

4

1280450C2

SEALING STRIP

- foam, 1730 mm

1шт.

5

3233702R3

LINING

COVER - insulator, right post

1шт.

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - left post, Includes: Ref. 6 - 10

1шт.

6

321-6771

DECAL

- warning, operating instructions

1шт.

7

1330784C4

LINING

COVER - insulator, left post

1шт.

8

1332221C1

RIVET

- split, blind

2шт.

9

1332222C1

DOOR COVER

CAP - rivet

2шт.

10

1330748C2

LARGE PLATE

PLATE - warning decal

1шт.

11

905934R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW - tapping, oval cross recess, 4.2 x 22 mm

6шт.

12

905928R1

SELF-TAP SCREW,Pan Hd, M4.2 x 22

SCREW - tapping, round cross recess, 4.2 x 22 mm

2шт.

13

3234052R1

WASHER

- cup, 6 mm

6шт.

14

3234042R1

SPRING NUT

- spring, push-on, 4.2 mm

8шт.

15

3234234R1

WASHER

- cover

4шт.

16

3233551R5

COVER

SHROUD - left

1шт.

16

3233552R5

COVER

SHROUD - right

1шт.

17

905631R1

PLUG,Hex Hd, G1/2A, Cl5.8

SCREW - tapping, countersunk cross recess, 5.5 x 32 mm

4шт.

18

3404795R1

NUT

NUT - spring, 5.6 mm

4шт.

19

3233690R2

PLUG

- shroud

2шт.

20

1270690C1

SEALING STRIP

- filling (Order 1259764C1)

5шт.

21

1270706C1

SEALING STRIP

- filling (Order 146793C1)

1шт.

22

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

- rubber, 21 mm

2шт.

23

1280244C2

SEAL

- front pillar

2шт.

24

3399850R2

PLUG

- 10.5 OD x 6 mm

1шт.

24

3399851R1

PLUG

- 13.5 OD x 8 mm

2шт.

24

84200C1

PLUG

- 17.1 OD x 8 mm

5шт.

24

84199C1

PLUG

- 18.8 OD x 10 mm

4шт.

24

3223767R1

PLUG

- 21.2 OD x 7.5 mm

11шт.

24

3404078R1

PLUG

- pin, 6 OD x 13.5 mm

8шт.

25

3234179R1

HANDLE

- right pillar

2шт.

26

905926R1

SCREW,#6 - 16

- countersunk, flat cross recess, 6 x 16 mm

8шт.

27

1280235C1

GASKET

- foam

1шт.

28

1259764C1

BACK-UP RING

STRIP - filling

2шт.

29

3234176R1

COAT HOOK

HOOK - coat

2шт.

30

99617C1

DECAL

- "A" post stripe, left

1шт.

30

99618C1

DECAL

- "A" post stripe, right

1шт.

Выбрано товаров: 39
