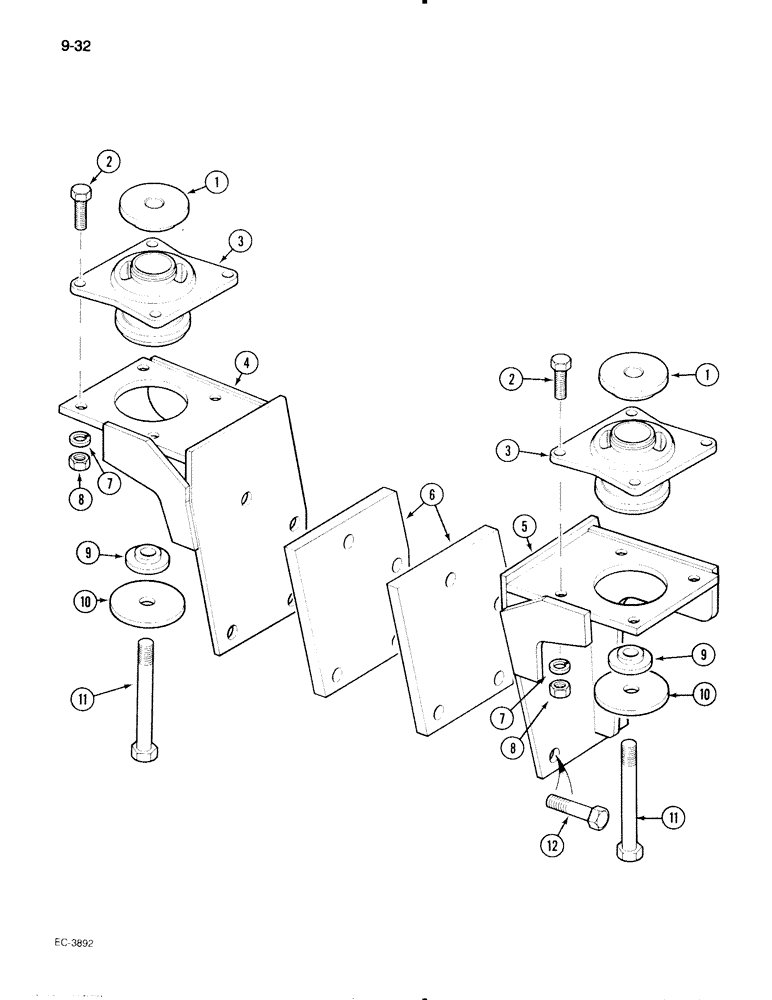

Запчасти Case IH 695 (9-032) - CAB MOUNTINGS, FRONT, P.I.N. JJE0013400 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

1537383C1

CUP WASHER

- mounting upper

2шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

3

1537382C1

SILENTBLOC

MOUNTING - cab frount

2шт.

4

1537158C2

SUPPORT

BRACKET ASSEMBLY - front right

1шт.

5

1537155C2

SUPPORT

BRACKET ASSEMBLY - front left

1шт.

6

3129865R2

SPACER

- mounting bracket

2шт.

7

892-11010

LOCK WASHER,M10

8шт.

8

825-1410

NUT,M10, Cl 8

8шт.

9

1537191C1

WASHER

- mounting lower

2шт.

10

1537176C1

WASHER

- rebound

2шт.

11

627-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

BOLT - 12mm x 110 class 10.9

2шт.

12

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, Grade 8

8шт.
