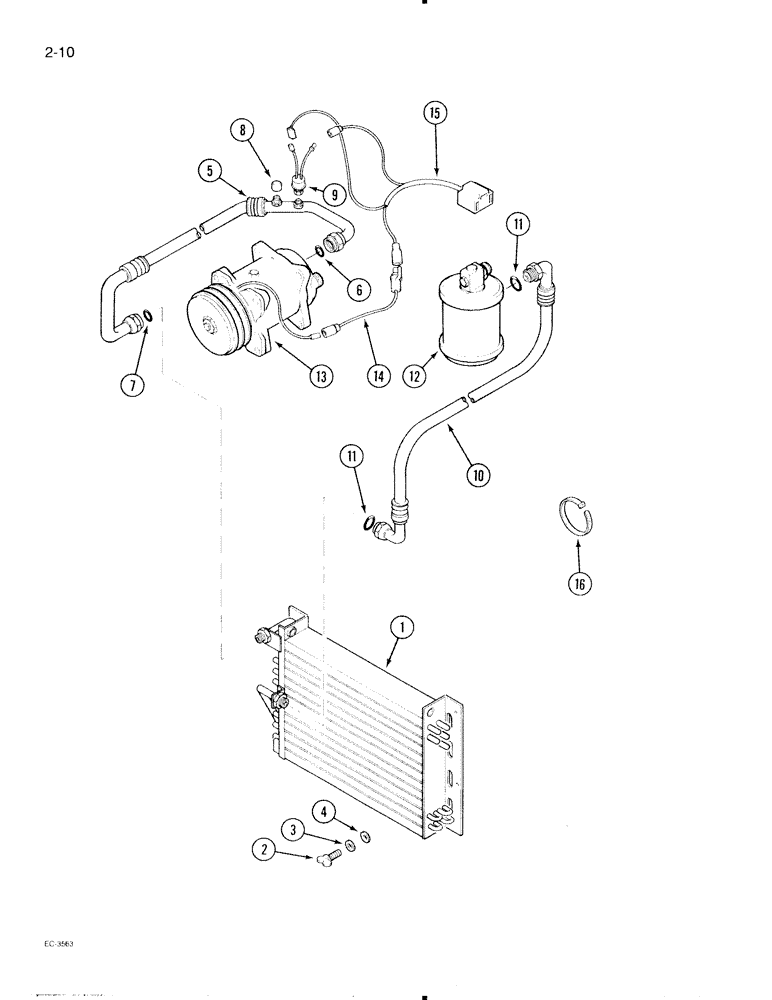

Запчасти Case IH 695 (2-10) - AIR CONDITIONING, CONDENSER AND CONNECTIONS (02) - ENGINE

1

1536992C1

CAPACITOR

CONDENSER ASSEMBLY - air conditioning

1шт.

2

1536993C1

THUMB SCREW,Winged, 5/16" - 18 x 12.70mm

- thumb, 5/16 inch NC

4шт.

3

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch

4шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

5

98012C2

HOSE

- compressor to condenser, Includes: Ref. 6 - 8

1шт.

6

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

8

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

9

111266C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

10

98013C3

HOSE

-, Serial Range: condenser-receiver

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

12

118304C2

RESERVOIR

RECEIVER - drier (See Figure 2-08)

1шт.

12

118304C2GV

RECEIVER-DRYER

RECEIVER - drier (See Figure 2-08)

1шт.

13

97204C1

COMPRESSOR

- freon (See Figure 2-12)

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

13

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

13

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

14

1964563C1

CABLE

- air conditioning compressor adaptor

1шт.

15

1536629C1

HARNESS

- air conditioning, front

1шт.

16

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.
