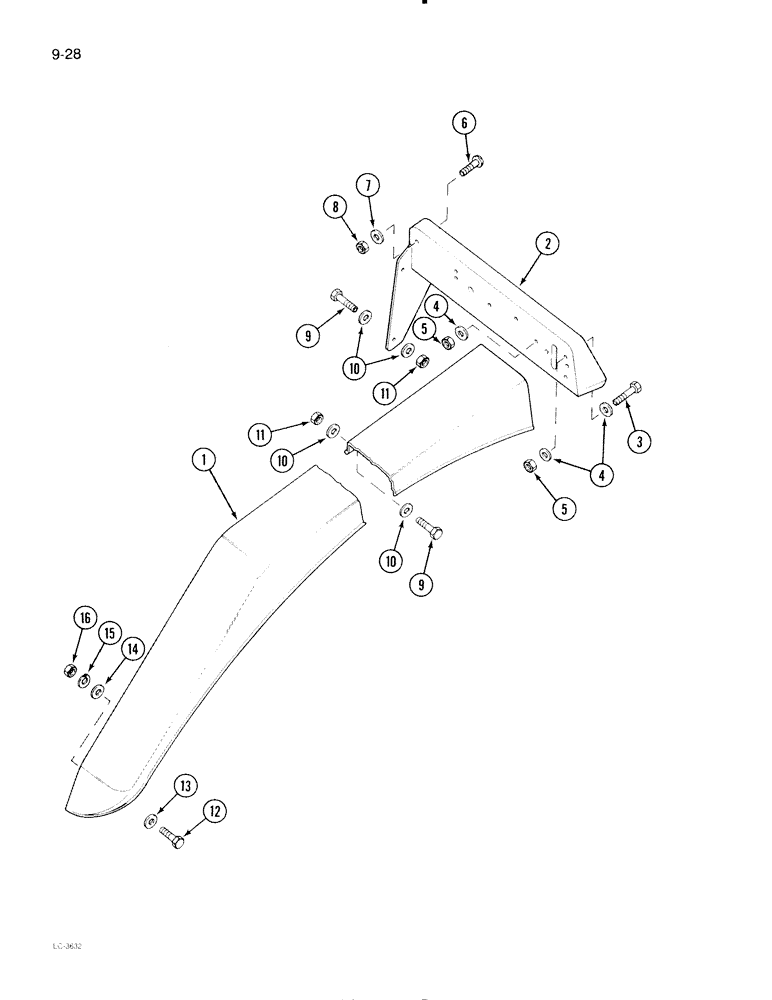

Запчасти Case IH 695 (9-028) - REAR FENDERS, TRACTOR WITH CAB (09) - CHASSIS/ATTACHMENTS

1

1971086C1

FENDER

- extension, right

1шт.

1

1971085C1

FENDER

- extension, left

1шт.

2

1971088C1

HOLDER

HOUSING ASSEMBLY - tail light, right

1шт.

2

1971087C1

HOLDER

HOUSING ASSEMBLY - tail light, left

1шт.

3

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

4

3145213R1

WASHER

- flat

10шт.

5

825-1406

NUT,M6, Cl 8

8шт.

6

1971121C1

SCREW

- countersunk, cross recess, 6 x 20 mm, black

10шт.

7

3145213R1

WASHER

- flat

10шт.

8

825-1406

NUT,M6, Cl 8

10шт.

9

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

18шт.

10

3145213R1

WASHER

- flat

1шт.

11

825-1406

NUT,M6, Cl 8

18шт.

12

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.00 x 25 mm

2шт.

13

3145213R1

WASHER

- flat

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

16

825-1406

NUT,M6, Cl 8

2шт.
