Запчасти Case IH 695 (9-026) - REAR FENDERS, FLAT TOP (09) - CHASSIS/ATTACHMENTS

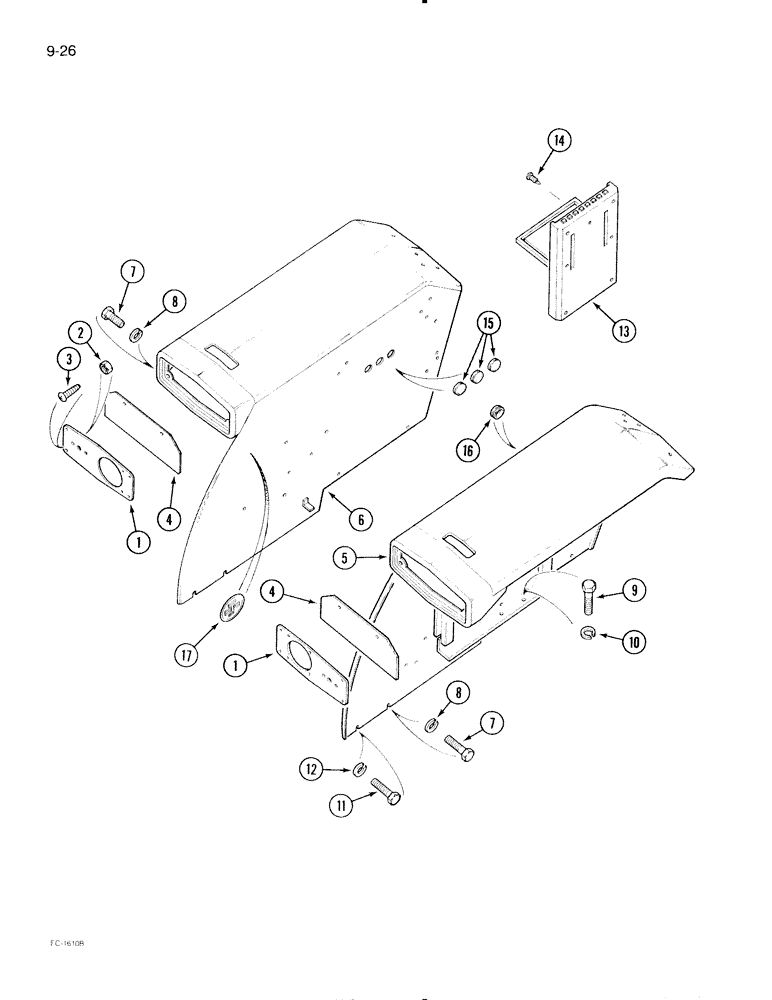

Схема запчастей Case IH 695 - (9-026) - REAR FENDERS, FLAT TOP (09) - CHASSIS/ATTACHMENTS
16
1
4
1
4
8
7
7
10
3
9
15
8
2
11
6
13
14
12
17
5

Артикул

Название

Примечание

Количество

1

1536059C1

PANEL

- light housing, front (See Figure 4-08)

2шт.

2

3123653R1

NUT

- captive, N0. 6, type AB

8шт.

3

260-1338

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

SCREW - tapping, pan head Phillips, N0. 6-20 x 1/2 inch

8шт.

4

3123654R1

SHIELD

- weather

2шт.

5

1536064C1

FENDER ASSY.

FENDER ASSEMBLY - hi-flat top, left, 900 mm

1шт.

REF. #5: 1536064C1 FENDER ASSY (HI-FLAT TOP, LEFT, 900MM). ORDER P/N 1536064C4. SPACER-P/N 531014R2-NOW FURNISHED SEPARATELY; NO LONGER SUPPLIED AS PART OF FENDER ASSY.

1шт.

5

1536062C1

FENDER ASSY.

FENDER ASSEMBLY - extra hi-flat top, left, 963 mm

1шт.

REF. #5: 1536062C1 FENDER ASSY (EXTRA HI-FLAT TOP, LEFT, 963MM). ORDER P/N 1536062C4. SPACER - P/N 531014R2-NOW FURNISHED SEPARATELY; NO LONGER SUPPLIED AS PART OF FENDER ASSY.

1шт.

6

1536065C1

FENDER ASSY.

FENDER ASSEMBLY - hi-flat top, right, 900 mm

1шт.

REF. #6: 1536065C1 FENDER ASSY (HI-FLAT TOP, RIGHT, 900MM). ORDER PT. NO. 1536065C3. SPACER - P/N 531014R2-NOW FURNISHED SEPARATELY; NO LONGER SUPPLIED AS PART OF FENDER ASSY.

1шт.

6

1536063C1

FENDER ASSY.

FENDER ASSEMBLY - extra hi-flat top,right, 963 mm

1шт.

REF. #6: 1536063C1 FENDER ASSY (EXTRA HI-FLAT TOP, RIGHT, 963MM). ORDER PT. NO. 1536063C3. SPACER - P/N 531014R2-NOW FURNISHED SEPARATELY; NO LONGER SUPPLIED AS PART OF FENDER ASSY.

1шт.

7

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

6шт.

7

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

9

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

11

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

11

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

12

492-11038

LOCK WASHER,3/8"

3шт.

13

T104294

BOX

- operators manual storage

1шт.

14

A162364

FASTENER

- panel

3шт.

15

99964C1

PLUG

- blanking

6шт.

16

531625R1

GROMMET

- rubber

2шт.

17

REF

INSTRUCTION

DECAL - speed chart, mph (See Figure 9-132)

1шт.
