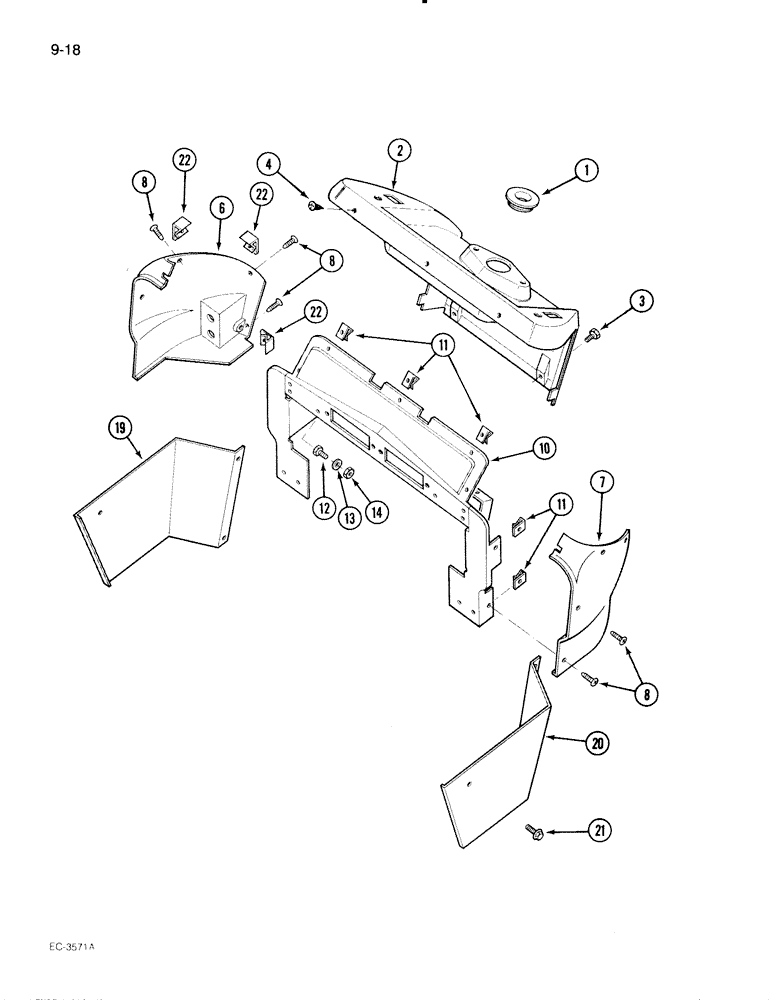

Запчасти Case IH 695 (9-018) - INSTRUMENT HOUSING, TRACTOR WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

3141495R1

BOOT

- rubber (Steering column)

1шт.

2

1536660C2

PANEL, INSTRUMENTS

HOUSING - instrument panel

1шт.

2

1536178C1

PANEL, INSTRUMENTS

HOUSING - instrument panel (Tractor with oil pressure gauge and ammeter)

1шт.

3

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

- pan head Phillips, 1/4 NC x 5/8 inch

2шт.

4

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - phillips, tapping, No. 10 - 16 x 5/8 inch

5шт.

6

3121712R3

HOUSING

- instrument panel side, right

1шт.

6

1536999C1

HOUSING

- instrument panel side, right (Tractor with oil pressure gauge and ammeter)

1шт.

7

3121711R4

HOUSING

- instrument panel side. left

1шт.

8

260-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 5/8 inch

10шт.

1333010C1

PLATE

ASSEMBLY - instrument panel support, Includes: Ref. 10 and 11

1шт.

10

1333008C1

PLATE

ASSEMBLY - instrument panel back

1шт.

11

3123171R2

NUT

- captive

7шт.

12

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

13

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

19

3121638R2

GUARD

PANEL - side, lower rear, right

1шт.

19

1333048C1

PANEL

- side, lower rear, right (Orchard tractor)

1шт.

20

3121637R2

GUARD

PANEL - side, lower rear, left

1шт.

20

1333047C1

PANEL

- side, lower rear, left (2WD Orchard tractor)

1шт.

20

1343116C1

GUARD

PANEL - side, lower rear, left (MFD Orchard tractor)

1шт.

21

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

- cap, 1/4 NC x 5/8 inch

6шт.

22

1536405C1

SPRING NUT

- spring, J-type

6шт.
