Запчасти Case IH 695 (8-62) - DRAFT CONTROL, EXTERNAL LEVERS AND LINKAGE, WITH CAB (08) - HYDRAULICS

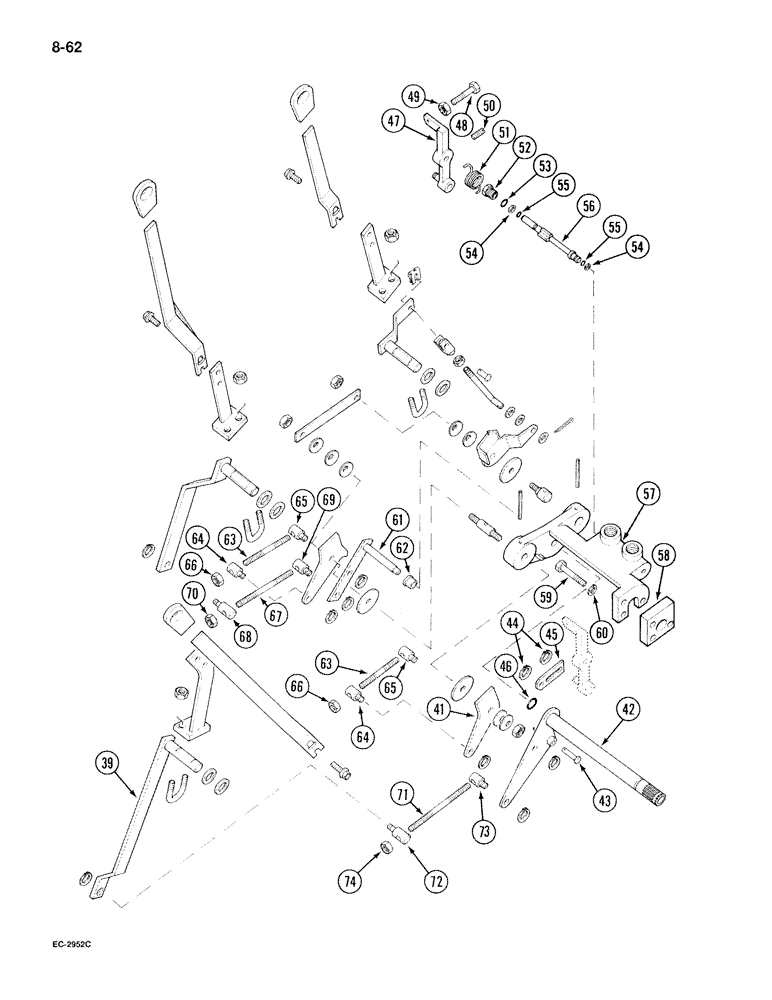

Схема запчастей Case IH 695 - (8-62) - DRAFT CONTROL, EXTERNAL LEVERS AND LINKAGE, WITH CAB (08) - HYDRAULICS
53
65
73
58
66
69
66
51
52
61
56
45
71
62
68
54
47
43
67
57
71
65
60
55
64
42
64
50
55
54
74
59
49
44
72
41
46
63
63
48
39

Артикул

Название

Примечание

Количество

39

3129738R1

SHAFT ASSY.

SHAFT - position control

1шт.

41

3118010R1

LEVER

- position control

1шт.

42

1500628C1

SHAFT ASSY.

SHAFT ASSEMBLY - position control

1шт.

43

527923R1

PIN

- link arm

1шт.

44

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, #X31, .243" Dia, E-Type

2шт.

45

527926R1

LINK

- flow control over-ride

1шт.

46

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

47

529353R2

ARM ASSY.

ARM - flow control

1шт.

48

1502037C1

SET SCREW

SCREW - set, hex, 1/4 NC x 1-1/2 inch

1шт.

49

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 NC

1шт.

50

65461C1

SET SCREW

SCREW - 1/4 inch NF, with nylon patch insert

1шт.

51

529352R1

SPRING

- return

1шт.

52

529356R1

PLUG

- variable flow control valve

1шт.

54

529355R1

WASHER

- back-up

2шт.

55

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

2шт.

56

529351R1

SPOOL

- variable flow control valve

1шт.

57

529349R3

SUPPORT

ASSEMBLY - hitch control shaft

1шт.

58

3129761R1

SPACER

- support assembly

1шт.

59

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

3шт.

60

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

61

1500632C1

SHAFT ASSY.

SHAFT ASSEMBLY - load control

1шт.

62

374940R1

NYLON BEARING

BEARING - control lever shaft

2шт.

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - draft control lever, Includes: Ref. 63 - 66

2шт.

63

400085R1

STUD

- connecting rod hitch link

1шт.

64

400086R1

PIN

- connecting hitch link front

1шт.

65

400087R1

PIN

- connecting hitch link rear

1шт.

66

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam 3/8 inch NC

1шт.

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - draft control lever, Includes: Ref. 67 - 70

1шт.

67

400085R1

STUD

- connecting rod hitch link

1шт.

68

1500634C1

PIN

- connecting hitch link front

1шт.

69

400087R1

PIN

- connecting hitch link rear

1шт.

70

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam 3/8 inch NC, Includes: Ref. 71 - 74

1шт.

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - draft control lever

1шт.

71

1500635C1

STUD

- hitch link

1шт.

72

1500634C1

PIN

- connecting hitch link front

1шт.

73

400087R1

PIN

- connecting hitch link rear

1шт.

74

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam 3/8 inch NC

1шт.

53

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 38
