(8-56) - DRAFT CONTROL, INTERNAL CONTROL LINKAGE

Запчасти Case IH 695 (8-56) - DRAFT CONTROL, INTERNAL CONTROL LINKAGE (08) - HYDRAULICS

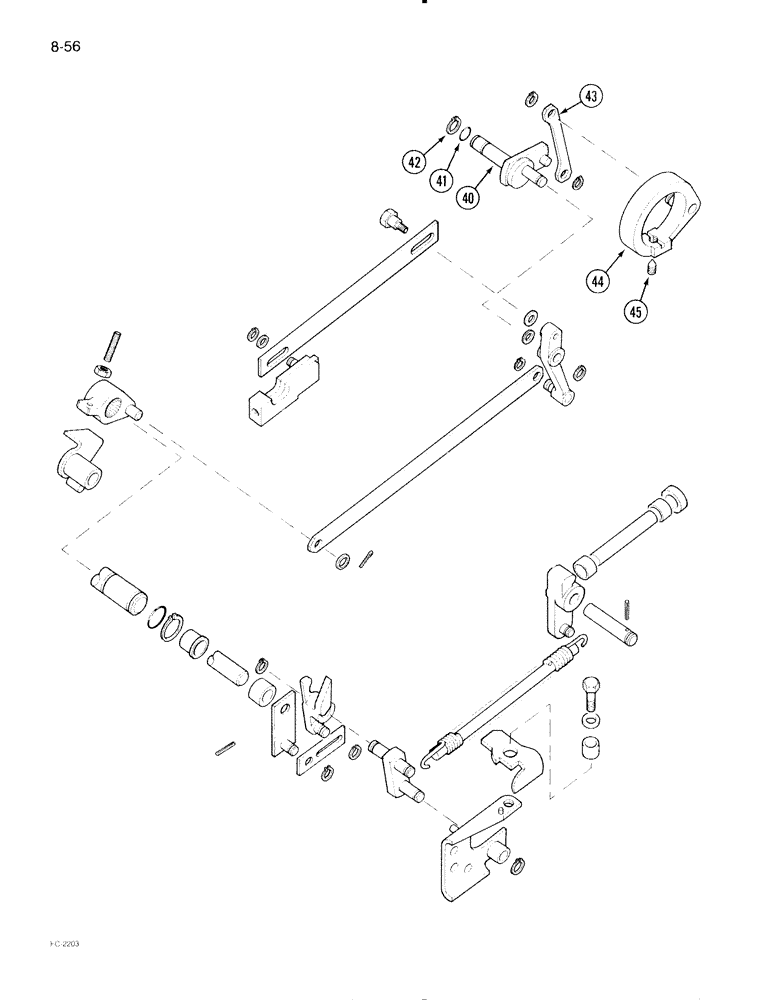

Схема запчастей Case IH 695 - (8-56) - DRAFT CONTROL, INTERNAL CONTROL LINKAGE (08) - HYDRAULICS
45
42
44
43
40
41
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

40

400036R1

ECCENTRIC ASSY.

ECCENTRIC ASSEMBLY - position control

1шт.

41

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

42

971043R1

SNAP RING,#50, Ext

1шт.

43

400008R1

LINK

- walking, position control

1шт.

44

533340R1

HUB ASSY.

HUB - rockshaft actuating

1шт.

45

377792R1

SET SCREW

SCREW - set, rockshaft hub

1шт.
