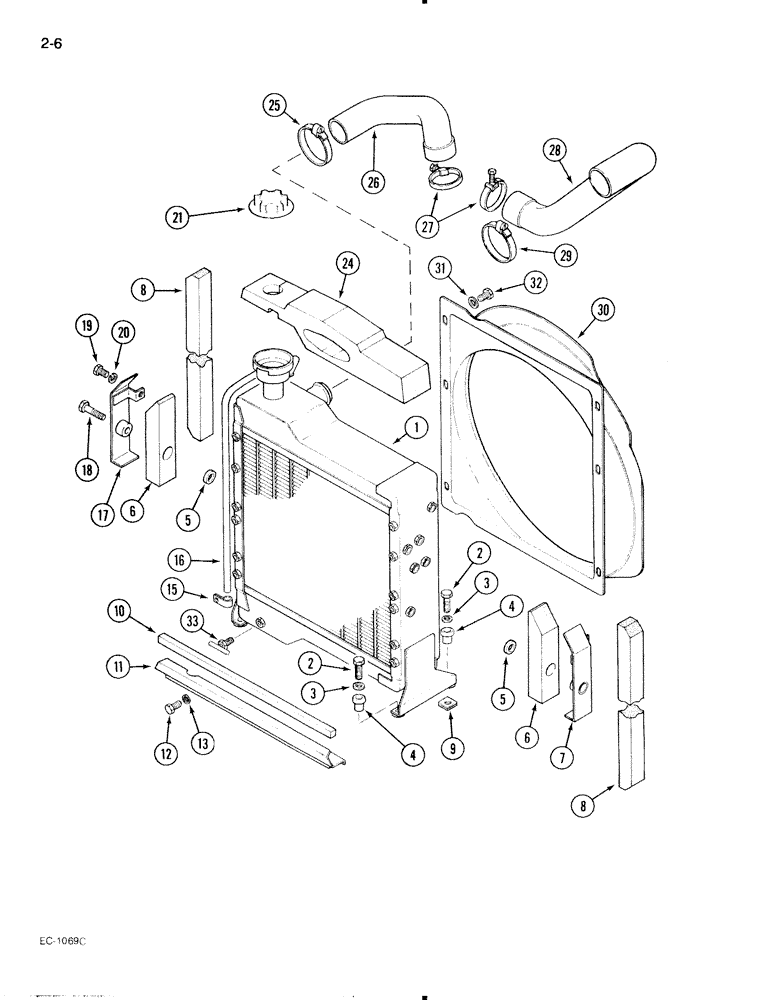

Запчасти Case IH 695 (2-06) - RADIATOR AND CONNECTIONS, WITH AIR CONDITIONING, WITH TROPICAL COOLING (02) - ENGINE

1

84673C5

RADIATOR

ASSEMBLY - engine coolant

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

95-81087

WASHER,13/32" x 1 1/8" x .075"

- flat, 13/32 x 1-1/8 x 5/64 inch

4шт.

4

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING - radiator isolator

4шт.

5

86224H

SPACER,1/4" Pipe x 3/8"

Radiator shield 1/4" Pipe x 3/8"

2шт.

6

98940C1

SEAL

- radiator side shield

2шт.

7

98914C1

GUARD

SHIELD - radiator seal, left

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - radiator side, 38 x 38 x 325 mm

2шт.

9

84525C1

SPACER

- rear mounting

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - foam, lower baffle, 13 x 13 x 480 mm

1шт.

11

98958C1

BAFFLE

- lower air

1шт.

12

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

2шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

163135H1

CLAMP,7/16", 3/8" Bolt

- bare metal, 0.44 inch diameter

1шт.

16

84515C3

HOSE

- overflow

1шт.

17

98913C1

GUARD

SHIELD - radiator seal, right

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

19

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

1500626C91

PLUG

CAP - radiator, complete

1шт.

24

98918C1

SEAL

- upper radiator

1шт.

25

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, #36, 1.81/2.75 Type F Worm

1шт.

26

84496C1

RADIATOR HOSE,44.00 mm ID, 49.00 mm ID x 270,190 mm, SAE 20R4 CLASS D1

Upper 44.00 mm ID, 49.00 mm ID x 270,190 mm, SAE 20R4 CLASS D1

1шт.

27

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, #36, 1.81/2.75 Type F Worm

2шт.

28

84497C2

RADIATOR HOSE,50.00 mm ID, 57.00 mm ID x 275,203,180 mm, SAE 20 R4 CLASS D1

Lower 50.00 mm ID, 57.00 mm ID x 275,203,180 mm, SAE 20 R4 CLASS D1

1шт.

29

122322R91

HOSE CLAMP,#44, 2.31/3.25 Type F Worm

CLAMP - hose, No. 36, type F

1шт.

30

1332963C1

SHROUD

- radiator

1шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

7шт.

32

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

7шт.

33

103647

VALVE

- drain cock, 1/4 inch taper pipe

1шт.
