Запчасти Case IH 695 (8-52) - DRAFT CONTROL, UNLOADING AND FLOW CONTROL VALVE (08) - HYDRAULICS

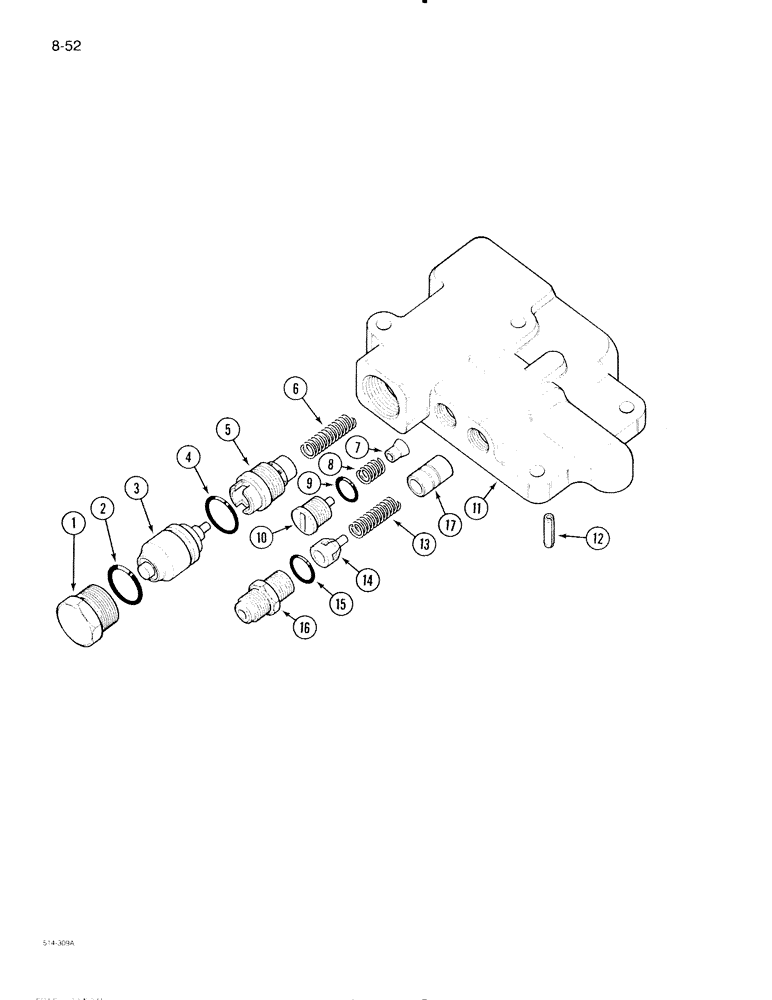

Схема запчастей Case IH 695 - (8-52) - DRAFT CONTROL, UNLOADING AND FLOW CONTROL VALVE (08) - HYDRAULICS
13
17
11
10
5
9
8
16
14
7
12
1
2
3
4
6
15

Артикул

Название

Примечание

Количество

59098C93

VALVE

ASSEMBLY - unloading and flow control, Includes: Ref. 1 - 17

1шт.

1

545494R2

PLUG

- unloading valve

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

3

376762R11

PISTON ASSY.

PISTON ASSEMBLY - unloading valve

1шт.

4

238-6212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 6, 90 Duro

1шт.

5

530138R1

BODY

ASSEMBLY - unloading valve

1шт.

6

530141R1

SPRING

- unloading

1шт.

7

389587R3

CHECK VALVE

VALVE - check poppet

1шт.

8

535547R1

SPRING

- check poppet

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

399851R1

PLUG

- check valve

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - unloading valve (Order valve assembly 59098C93)

1шт.

12

617057R1

PIN,1/4" x 1", Coiled

1шт.

13

530142R1

SPRING

- flow control valve

1шт.

14

58367C1

GUIDE

- spring

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

17

NSS

NOT SOLD SEPARAT

SPOOL - flow control valve (Order valve assembly 59098C93)

1шт.

Выбрано товаров: 18
