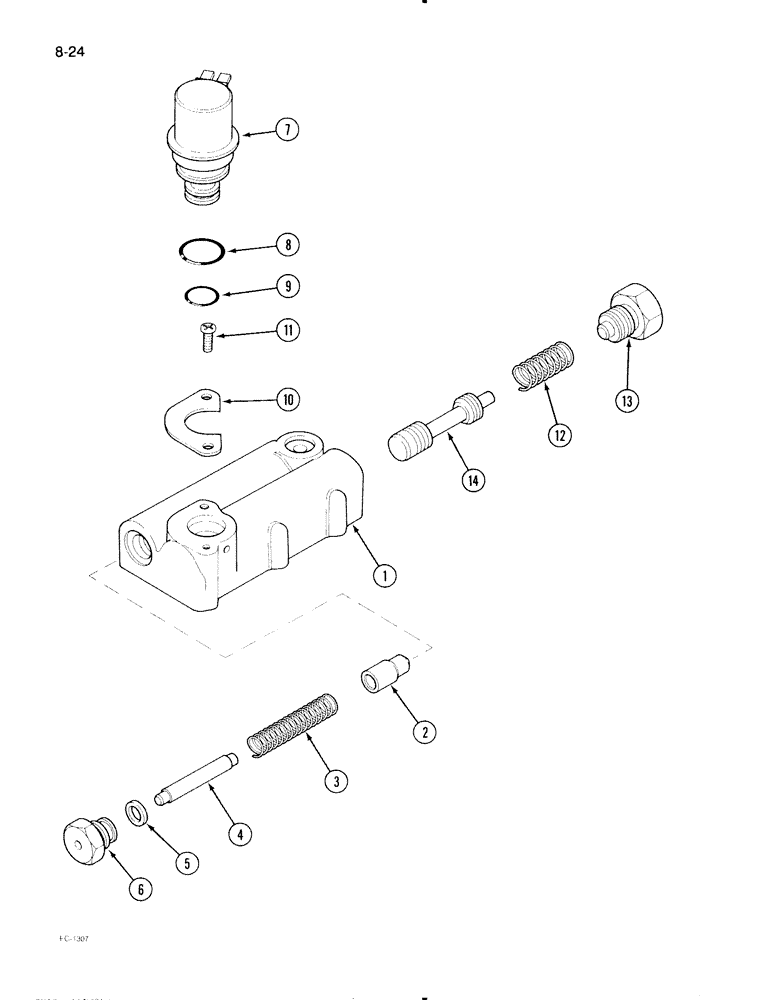

Запчасти Case IH 695 (8-24) - REGULATOR VALVE ASSEMBLY, TWO SPEED POWER SHIFT (08) - HYDRAULICS

83006C94

VALVE

ASSEMBLY - pressure regulator, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - regulator valve (Order valve assembly 83006C94)

1шт.

2

399882R1

POPPET

- poppet, pressure regulator

1шт.

3

88426C1

SPRING

- pressure regulator valve

1шт.

4

399881R2

PIN

- pressure regulator valve

1шт.

5

1954071C1

WASHER

- pressure regulator valve

1шт.

6

1954070C1

PLUG

- regulator valve

1шт.

7

1958120C1

SOLENOID VALVE

VALVE - solenoid, Includes: Ref. 8 and 9

1шт.

8

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

9

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

1шт.

10

1289695C1

COLLAR

CLAMP - solenoid valve

1шт.

11

30827R1

SCREW,Cross Pan Hd, M4 x 8

- pan head Phillips, 4 mm - 0.7 x 8 mm

2шт.

12

1289693C3

SPRING

- compression

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG - regulator valve

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - regulator valve

1шт.
