Запчасти Case IH 695 (8-22) - REGULATOR VALVE MOUNTING PLATE, MFD TRACTOR WITHOUT TWO SPEED POWER SHIFT (08) - HYDRAULICS

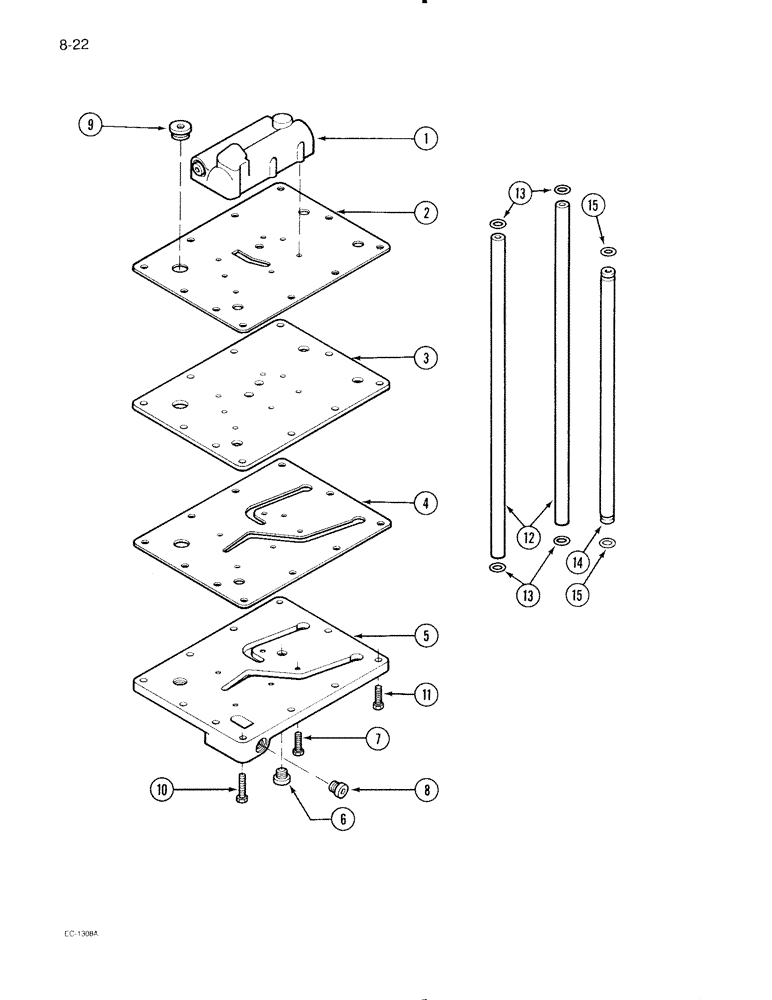

Схема запчастей Case IH 695 - (8-22) - REGULATOR VALVE MOUNTING PLATE, MFD TRACTOR WITHOUT TWO SPEED POWER SHIFT (08) - HYDRAULICS
2
4
11
15
10
13
13
8
7
15
9
5
1
6
14
3
12

Артикул

Название

Примечание

Количество

1

83190C92

VALVE

ASSEMBLY - pressure regulator (See Figure 8-26)

1шт.

2

83009C2

GASKET

- separator plate

1шт.

3

83010C2

PLATE

- separator

1шт.

4

83011C2

GASKET,0.79mm Thk

- core plate

1шт.

5

83013C2

LARGE PLATE

PLATE - core

1шт.

6

86258C1

PLUG,M12 x 1.5

- 12 mm - 1.75, with packing ring

1шт.

7

615-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 30 mm

5шт.

8

86258C1

PLUG,M12 x 1.5

- 12 mm - 1.75, with packing ring

1шт.

9

87953C1

PLUG

- 22 mm - 2.50, with packing ring

1шт.

10

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

9шт.

12

402545R1

PRESSURE PIPE

TUBE - pump pressure

2шт.

13

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

14

83401C1

PIPE

TUBE - oil inlet

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

Выбрано товаров: 15
