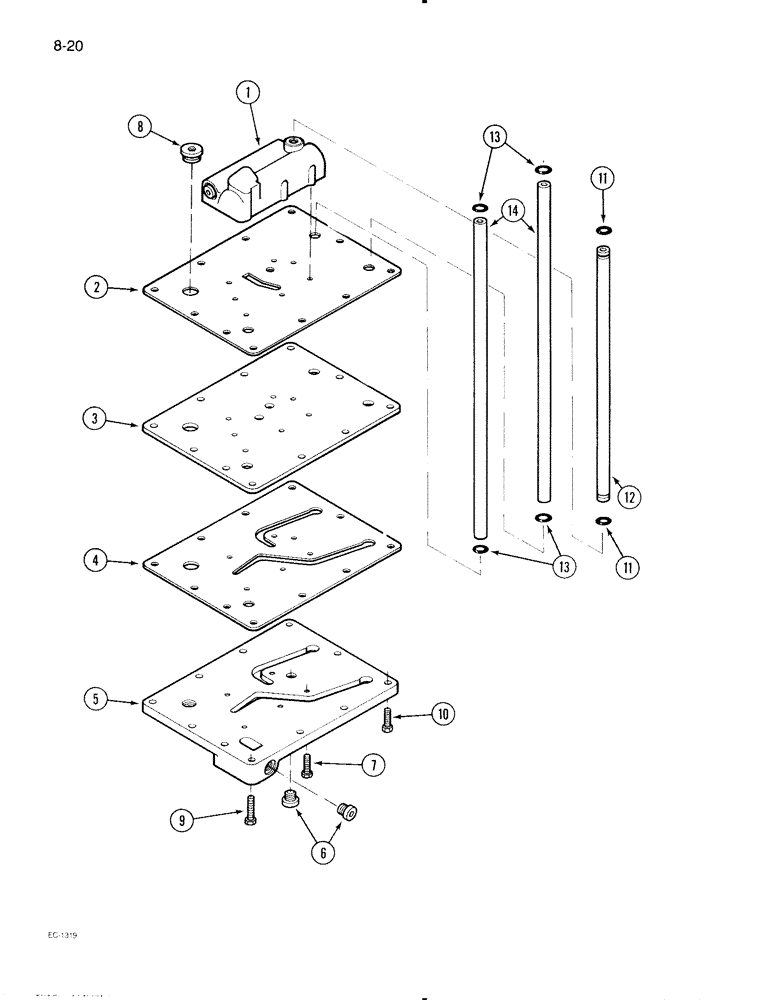

Запчасти Case IH 695 (8-20) - REGULATOR VALVE MOUNTING PLATE, FORWARD AND REVERSE (08) - HYDRAULICS

1

94121C92

VALVE

ASSEMBLY - pressure regulator (See Figure 8-26)

1шт.

2

83009C2

GASKET

- separator plate

1шт.

3

83010C2

PLATE

- separator

1шт.

4

83011C2

GASKET,0.79mm Thk

- core plate

1шт.

5

83013C2

LARGE PLATE

PLATE - core

1шт.

6

86258C1

PLUG,M12 x 1.5

- 12 mm - 1.75, with packing ring

2шт.

7

615-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 30 mm

5шт.

8

87953C1

PLUG

- 22 mm - 2.50, with packing ring

1шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

9шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

402544R1

SUCTION PIPE

TUBE - oil inlet (Prior to P.I.N. JJE0024513)

1шт.

12

83401C1

PIPE

TUBE - oil inlet (P.I.N. JJE0024513 and After)

1шт.

13

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

14

402545R1

PRESSURE PIPE

TUBE - pump pressure

2шт.
