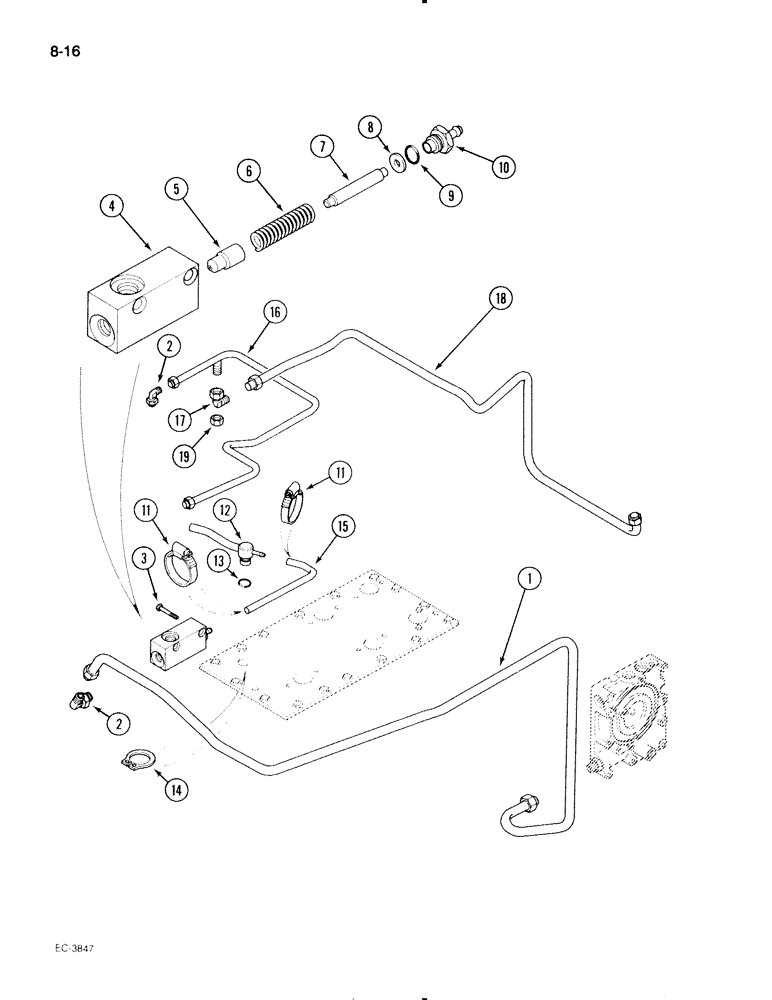

Запчасти Case IH 695 (8-16) - REGULATOR VALVE AND CONNECTIONS CREEP, WITH CAB (08) - HYDRAULICS

1

1343342C1

HYD TUBE,0.5" OD, 573, 339 mm Length

TUBE ASSEMBLY - return to mc valve

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

1343334C1

VALVE

ASSEMBLY - regulator, Includes: Ref. 4 - 9

1шт.

4

1343333C1

VALVE BODY

BODY ASSEMBLY - regulator valve

1шт.

5

399882R1

POPPET

- pressure regulator

1шт.

6

88426C1

SPRING

- regulator valve

1шт.

7

399881R2

PIN

- regulator valve

1шт.

8

1954071C1

WASHER

WASHER - spring retainer

1шт.

10

1343336C1

PLUG

- regulator valve

1шт.

11

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - adj, 1/4 - 5/8 inch dia

2шт.

12

1343348C1

PIPE

TUBE ASSEMBLY - break dump

1шт.

13

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

14

21332R1

SNAP RING,#68, Ext

1шт.

15

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

- rubber, 1/4 inch ID, 50 foot roll

1шт.

16

1343343C1

PIPE,0.5" OD, 450, 338 mm Length

TUBE ASSEMBLY - return to regulator

1шт.

17

99706C1

ELBOW

- 90 degree, 9/16-18 flare x swivel flare

1шт.

18

1343341C2

PIPE,0.313" OD, 433, 573 mm Length

TUBE ASSEMBLY - drop box

1шт.

19

218-754

CAP,37 Degree, 9/16"-18

- 3/8 inch flared tube

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
