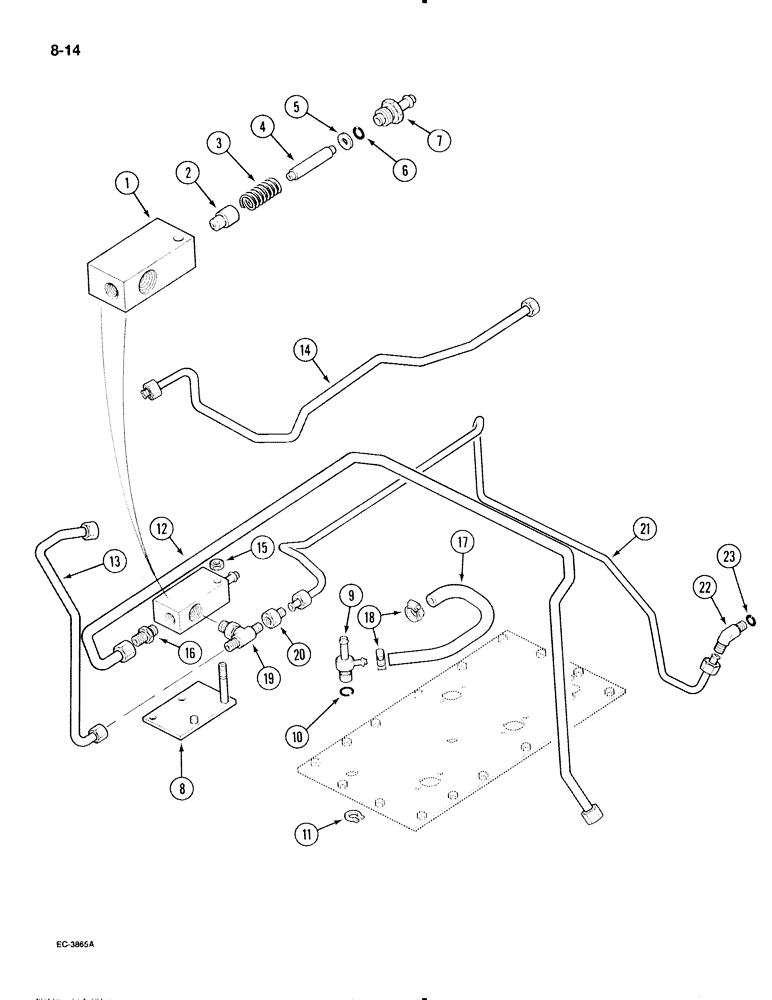

Запчасти Case IH 695 (8-14) - REGULATOR VALVE AND CONNECTIONS CREEP, WITHOUT CAB (08) - HYDRAULICS

1343334C1

VALVE

ASSEMBLY - regulator, Includes: Ref. 1 - 7

1шт.

1

1343333C1

VALVE BODY

BODY ASSEMBLY - regulator valve

1шт.

2

399882R1

POPPET

- regulator

1шт.

3

88426C1

SPRING

- regulator valve

1шт.

4

399881R2

PIN

- regulator valve

1шт.

5

1954071C1

WASHER

WASHER - spring retainer

1шт.

7

1343336C1

PLUG

- regulator valve

1шт.

8

1343335C1

LARGE PLATE

PLATE ASSEMBLY - valve mounting

1шт.

9

1343344C1

PIPE

TUBE ASSEMBLY - brake dump

1шт.

10

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

11

21332R1

SNAP RING,#68, Ext

1шт.

12

1343337C1

HYD TUBE,0.5" OD, 473, 398 mm Length

TUBE ASSEMBLY - power steering return to MC valve

1шт.

13

1343339C2

PIPE,0.5" OD, 401, 68 mm Length

TUBE ASSEMBLY - power steering return

1шт.

14

1343340C1

PIPE,0.5" OD, 614, 121 mm Length

TUBE ASSEMBLY - oil cooler

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare

1шт.

17

145518C1

HOSE

- valve bleed

1шт.

18

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - adj, 1/4 - 5/8 inch dia

2шт.

19

9411118

TEE,3/4"-16, 37 Degree x 3/4"-16, O-Ring Br

- adjustable, 1/2 inch

1шт.

20

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING - reducer, 1/2 x 3/8 inch

1шт.

21

1343338C1

PIPE

TUBE ASSEMBLY - drop box

1шт.

22

99865C1

ELBOW

- 90 degree, 12 mm x 1.5

1шт.

23

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
