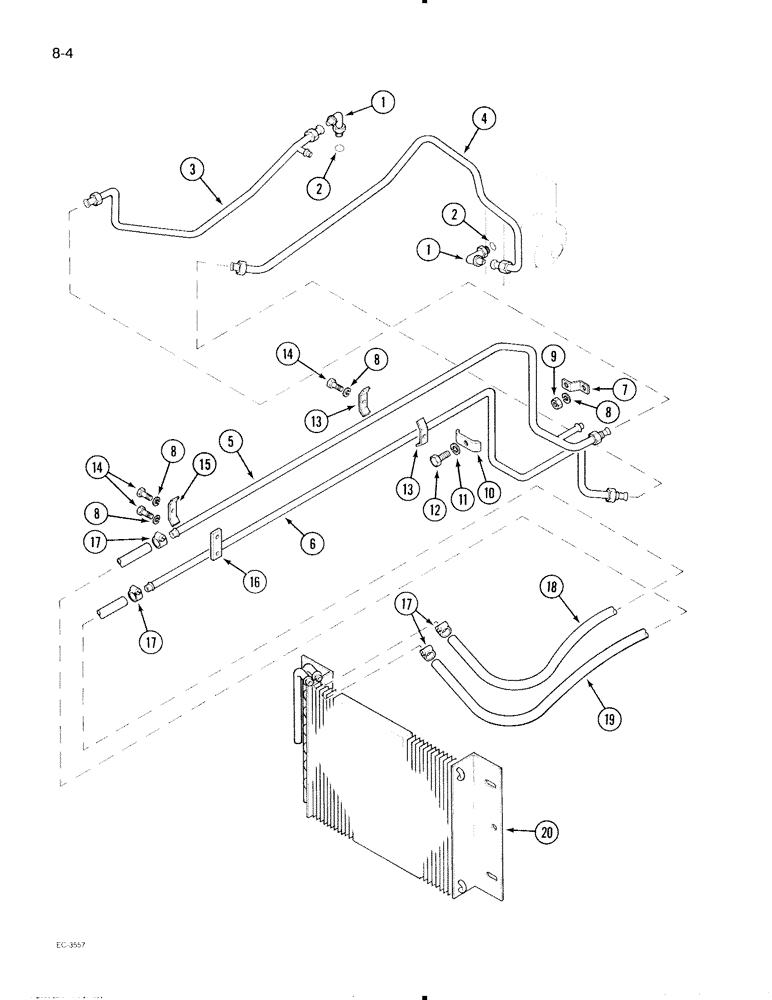

Запчасти Case IH 695 (8-04) - OIL COOLER SYSTEM, TRACTOR WITHOUT CAB (08) - HYDRAULICS

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4 inch NF flare x adj. O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

66096C4

PIPE

TUBE ASSEMBLY - oil cooler return, rear

1шт.

4

3129259R1

PIPE

TUBE ASSEMBLY - oil cooler supply, rear

1шт.

5

99782C1

PIPE

TUBE ASSEMBLY - oil cooler return, front

1шт.

6

99783C1

PIPE

TUBE ASSEMBLY - oil cooler supply, front

1шт.

7

99790C1

SUPPORT

BRACKET - support

1шт.

8

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

9

25-104

NUT,1/4"-20, G5

1шт.

10

99788C1

CLAMP

- tube

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

12

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

- hex, 6mm - 1.00 x 30 mm

1шт.

13

529644R11

CLAMP

ASSEMBLY - tube

1шт.

14

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

15

529644R11

CLAMP

- tube

1шт.

16

98937C1

SUPPORT

BRACKET ASSEMBLY - front

1шт.

17

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP - hose, No. 10, type F

4шт.

17

3074617R1

CLAMP

- hose, Serial Range: (Optional-274085R91)

4шт.

18

NSS

NOT SOLD SEPARAT

HOSE - oil cooler inlet, 508 mm (Cut from hose 3125980RX)

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE - oil cooler outlet, 508 mm (Cut from hose 3125980RX)

1шт.

20

1536379C2

COOLER, OIL

COOLER - oil, stud mounted

1шт.

3125980RX

LARGE HOSE

HOSE - rubber, 1/2 inch ID, bulk length

1шт.
