Запчасти Case IH 695 (7-14) - HEAVY DUTY PARK BRAKE (07) - BRAKES

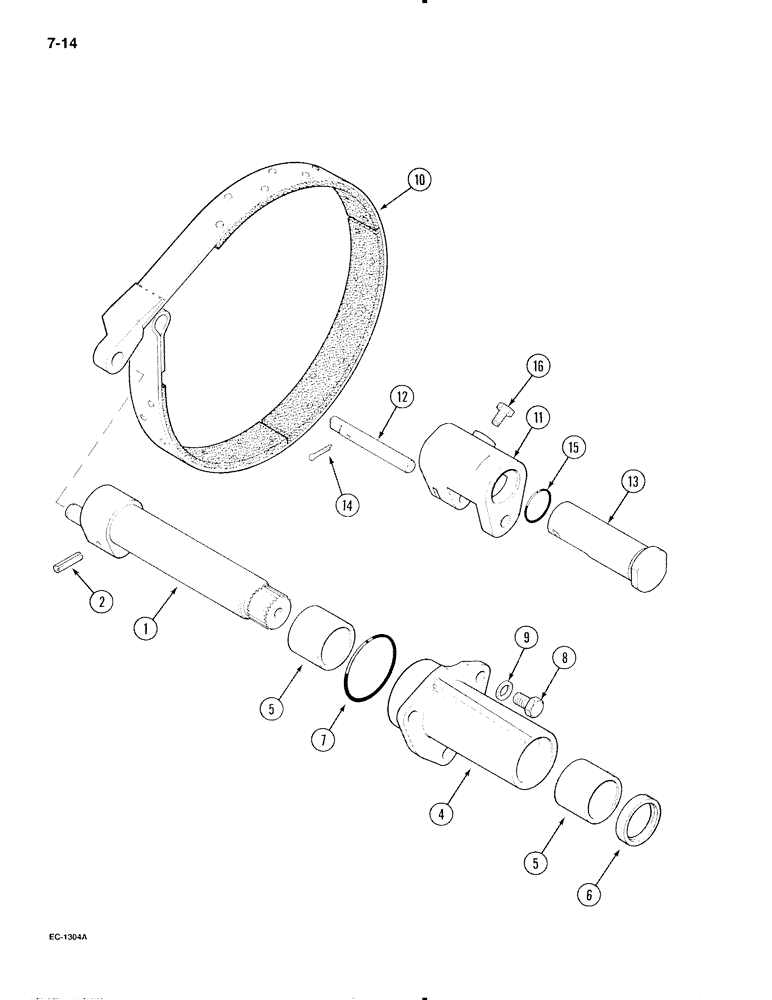

Схема запчастей Case IH 695 - (7-14) - HEAVY DUTY PARK BRAKE (07) - BRAKES
5
4
7
9
1
5
12
14
13
15
8
11
16
6
2
10

Артикул

Название

Примечание

Количество

1

94328C3

SHAFT

ASSEMBLY - brake cam, Includes: Ref. 2

1шт.

2

30266R1

PIN,M4 x 20, Coiled

- coiled spring, 4 x 20 mm

1шт.

4

94329C93

PIVOT

ASSEMBLY - park brake, Includes: Ref. 5 and 6

1шт.

5

1536283C1

BUSHING

- pivot assembly

2шт.

6

126214C91

OIL SEAL

- lip

1шт.

7

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

8

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

3шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

10

1970897C1

BRAKE BAND

BAND ASSEMBLY - brake

1шт.

11

94061C2

PIVOT

HANGER - brake band

1шт.

12

88655C1

PIN

- park brake hanger

1шт.

13

94062C3

SHAFT

- hanger support

1шт.

14

732-4025

COTTER PIN,M4 x 25

PIN - cotter, 4 x 25 mm

1шт.

15

30606R1

O-RING,2.65mm Thk x 30mm ID, Cl 5, 75 Duro

- 30 mm ID

2шт.

16

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 15
