Запчасти Case IH 695 (7-10) - BRAKE MASTER CYLINDER (07) - BRAKES

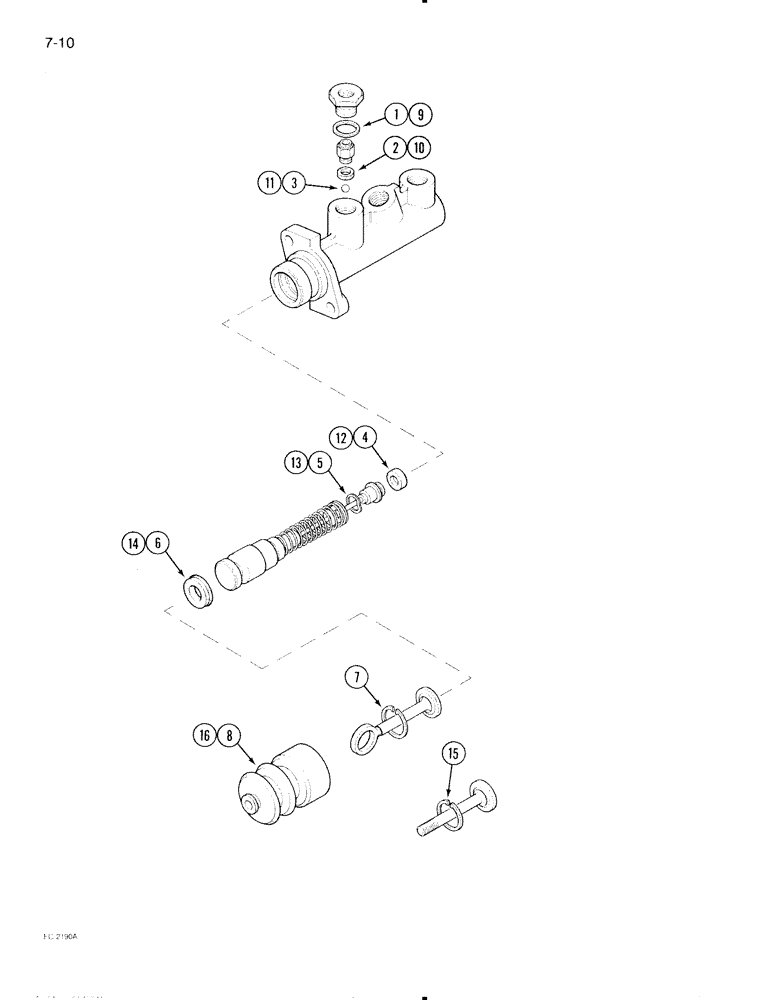

Схема запчастей Case IH 695 - (7-10) - BRAKE MASTER CYLINDER (07) - BRAKES
8
4
9
3
6
16
13
12
1
15
11
7
5
2
10
14

№

Артикул

Название

Примечание

Количество

1287843C91

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master, tractor without cab, Includes: Ref. 1 - 8

2шт.

1

NSS

NOT SOLD SEPARAT

GASKET - flow valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - flow valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

3

NSS

NOT SOLD SEPARAT

BALL - flow valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - spring

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

7

NSS

NOT SOLD SEPARAT

CIRCLIP - valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

8

1288242C1

BELLOWS

BOOT - dust, brake master cylinder

1шт.

1288228C1

REPAIR KIT

KIT - service, brake master cylinder, Includes: Ref. 1 thru 7

1шт.

102027A1

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master, tractor with cab, Includes: Ref. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - flow valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - flow valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

11

NSS

NOT SOLD SEPARAT

BALL - flow valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - spring

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

15

NSS

NOT SOLD SEPARAT

CIRCLIP - valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

16

85109C1

BELLOWS

BOOT - dust, brake master cylinder

1шт.

1288229C1

KIT

KIT - service, brake master cylinder, Includes: Ref. 9 thru 15

1шт.

Выбрано товаров: 34
